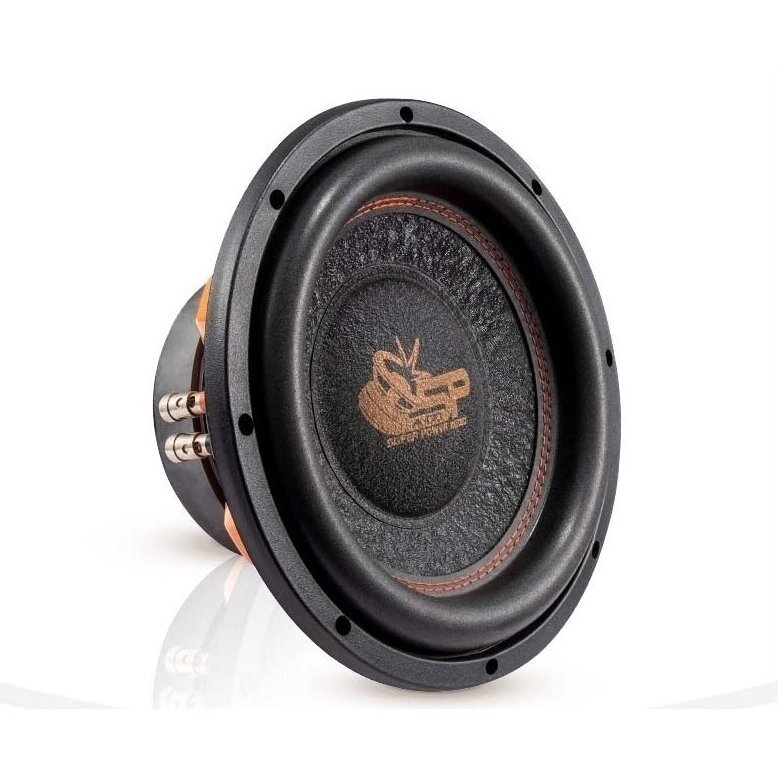

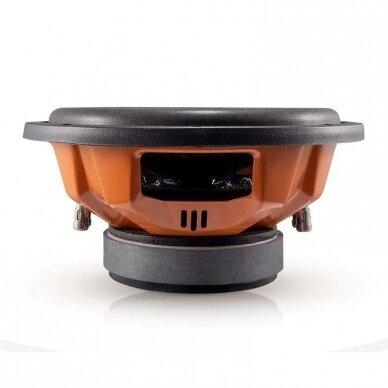

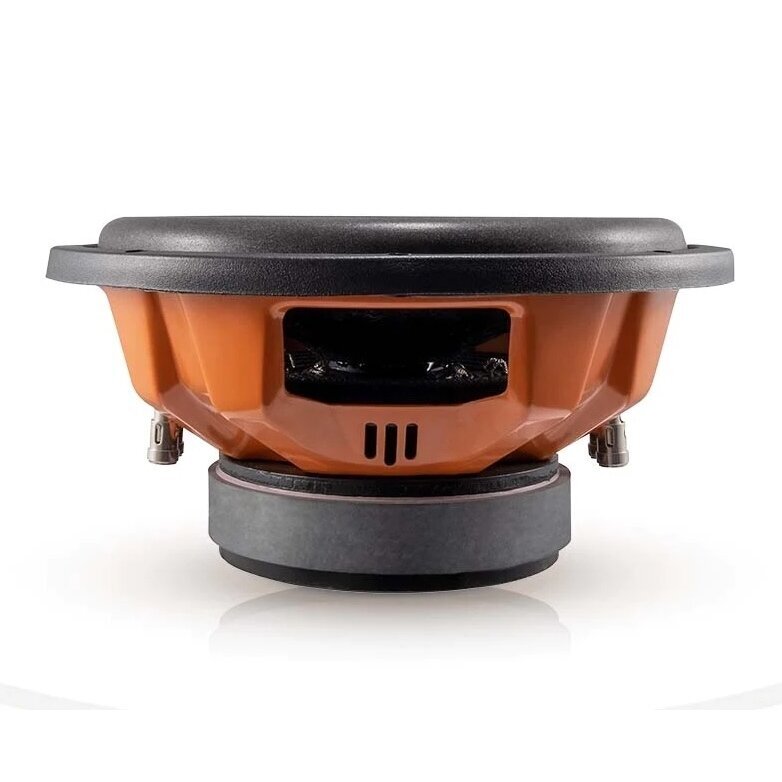

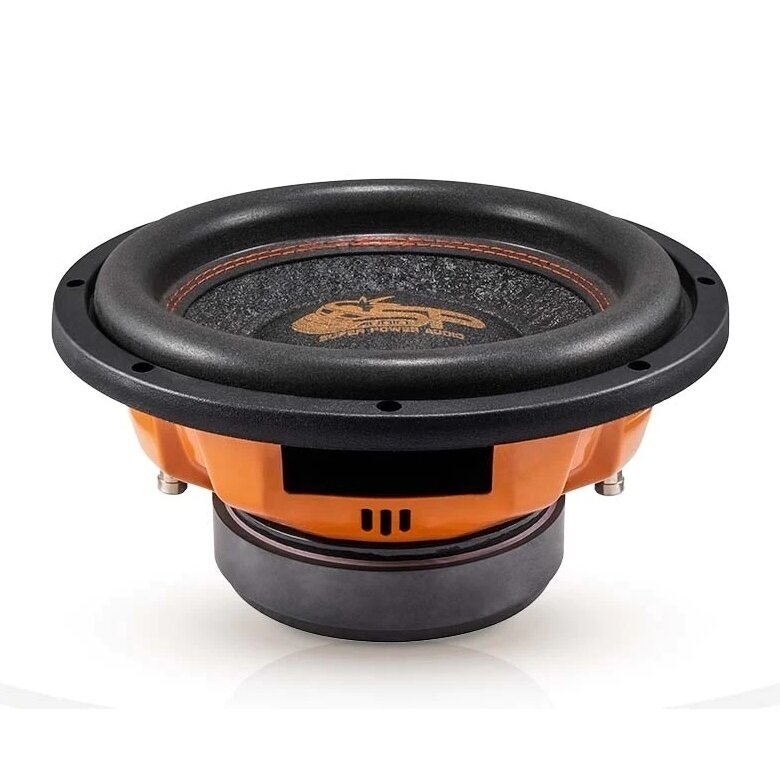

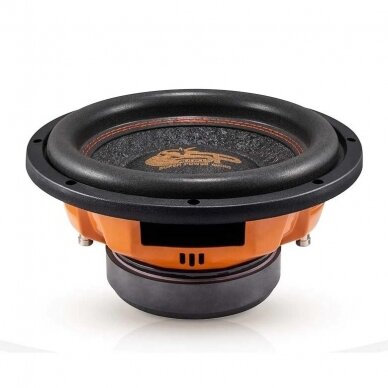

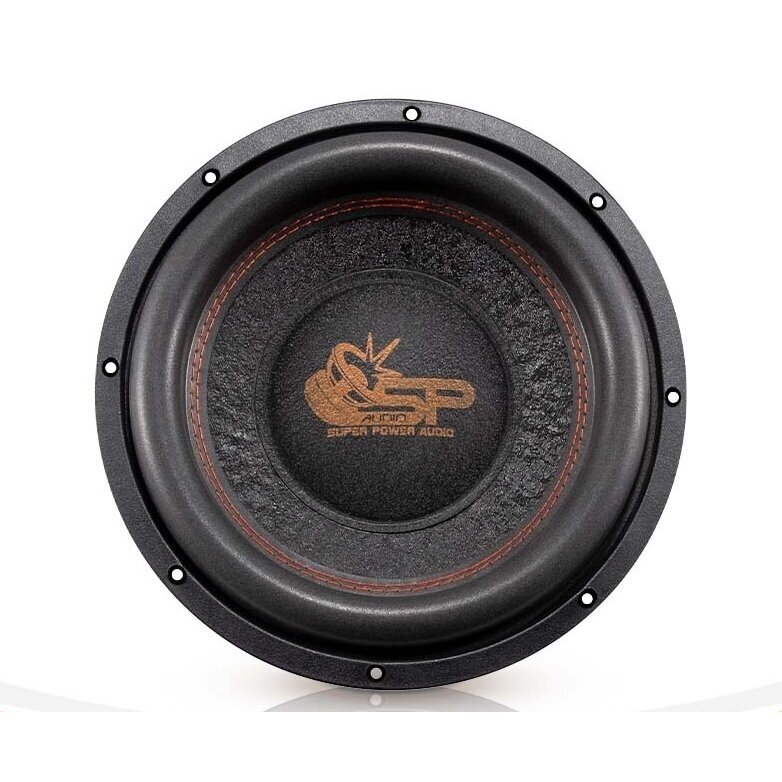

SP Audio SP-10CW

SPECIFICATION

Nominal Diameter: 261 mm (10¨)
Rated Impedance: 2+2 ohms
Rated Power (RMS): 200 WATTS
Peak Power (MAX): 400 WATTS
Sensitivity: 87 dB
Frequency Range: 32-2 KHz
VC Diameter (mm/in): 50mm / 2”
Winding Material: 200°C Cu
Suspension: Wire Large ”R” Form
Cone : Black Non Press Paper

Vent BOX

Volume: 23L
Tuning freq: 37.4Hz
Vent diameter: 76mm
Shape: Circle
End correction: One flanged end
Vent length: 16cm

Qts: 0.709
Vas: 20.3L
Fs: 37.4Hz
Re: 2+2ohm
Mms: 138.3g
Xmax: 9.5mm
Cms: 131.27um/N
Qms: 8.01
Qes: 0.78
SPL: 87db
Pe: 200W
BL: 12TM
Dd: 20.5cm
Sd: 330.06cm2
