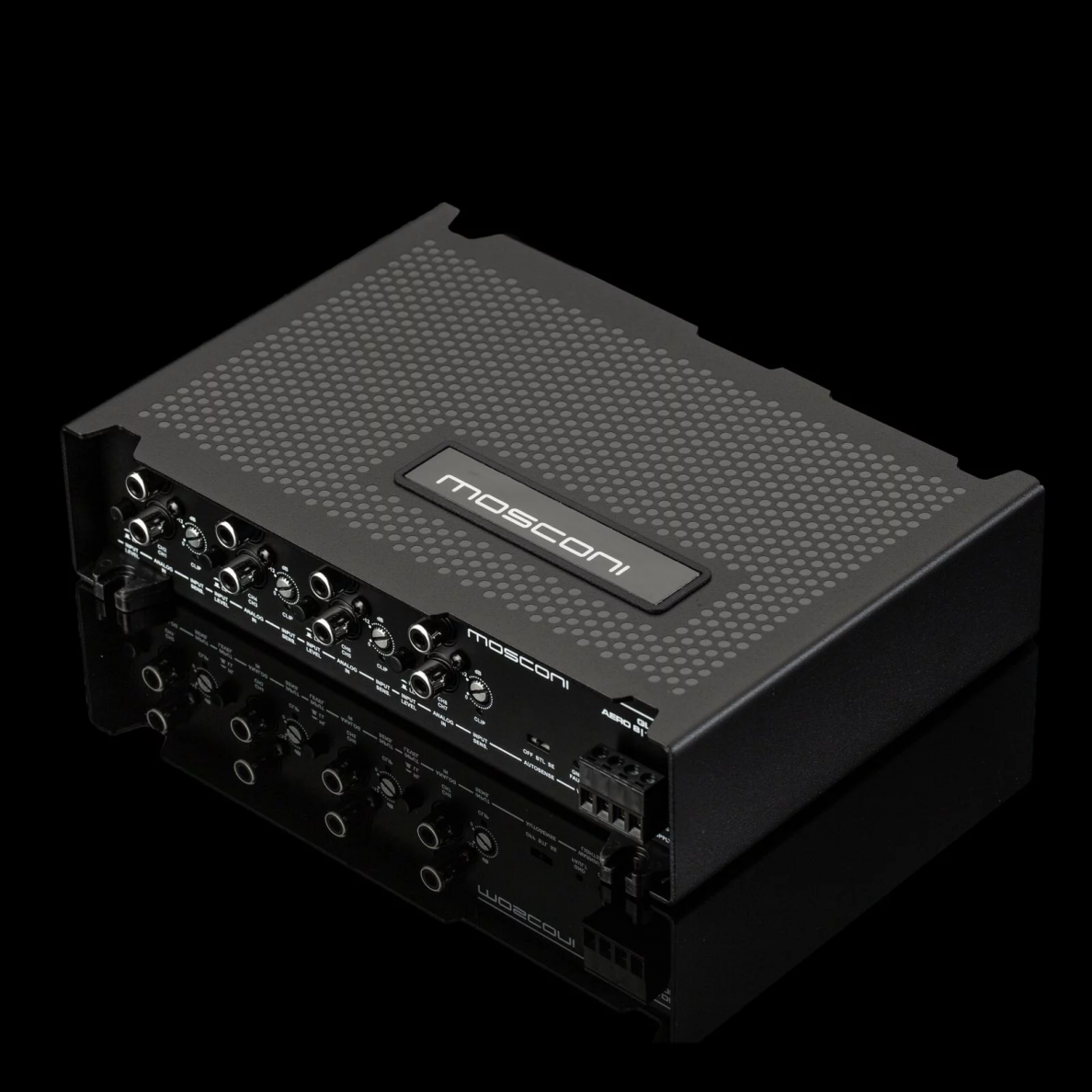

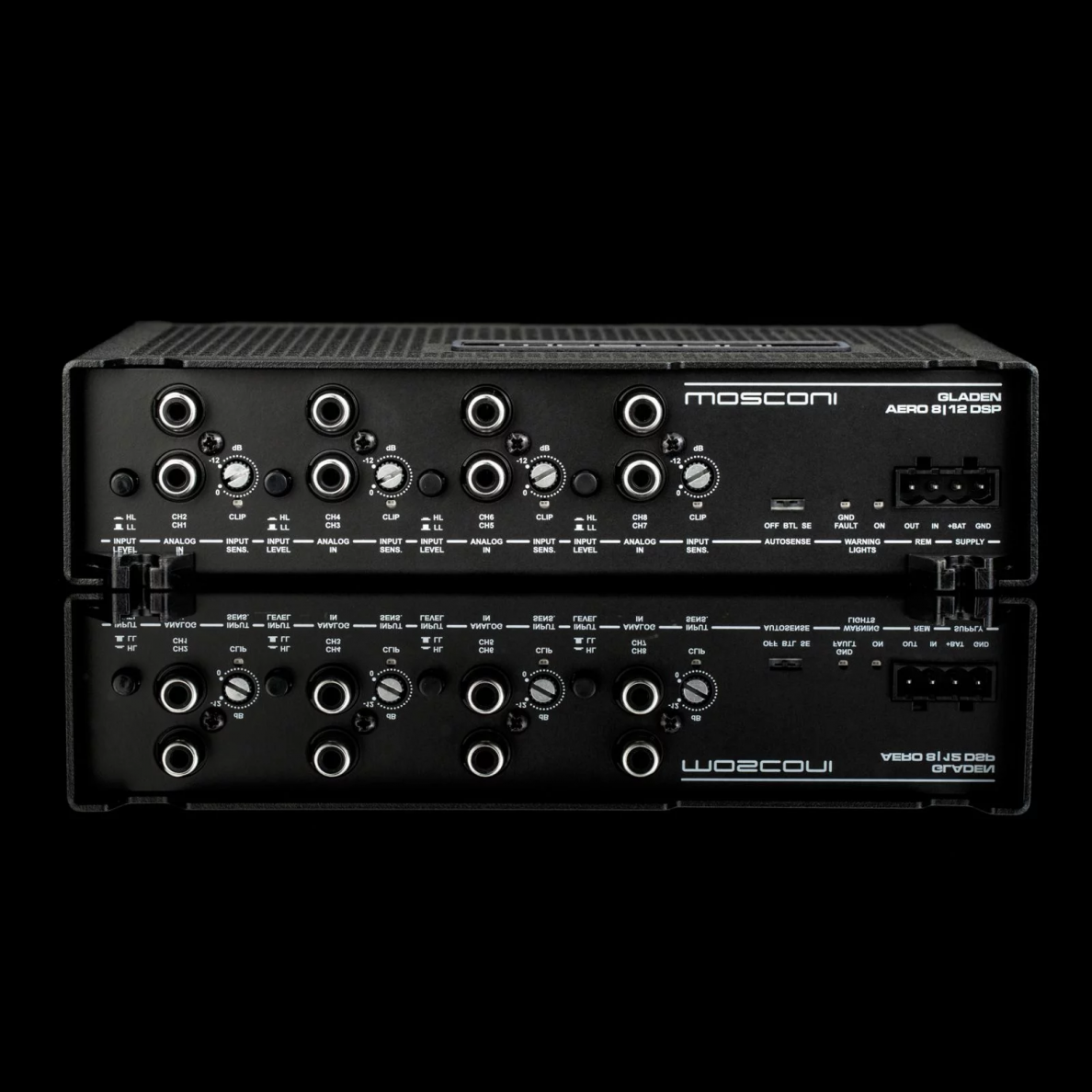

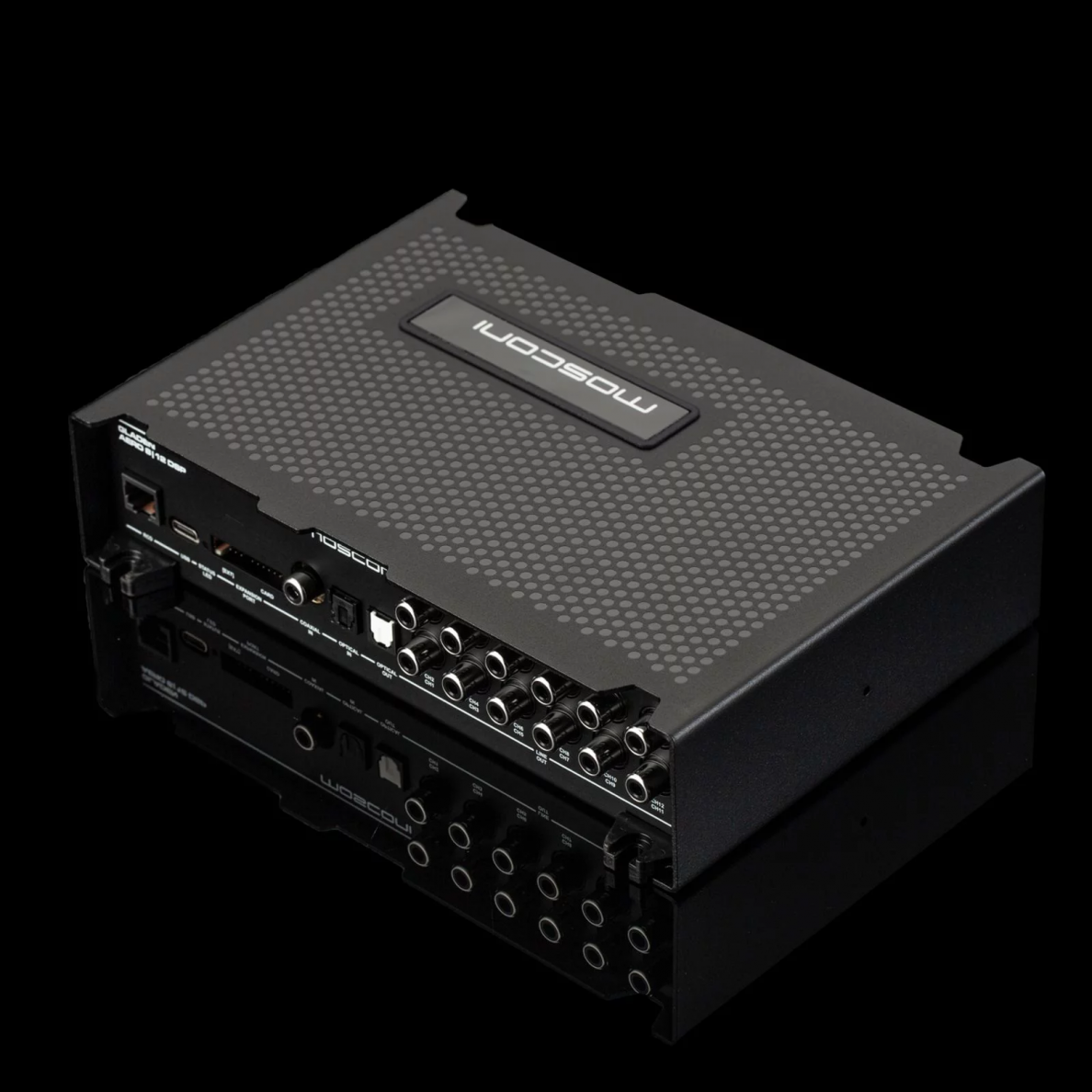

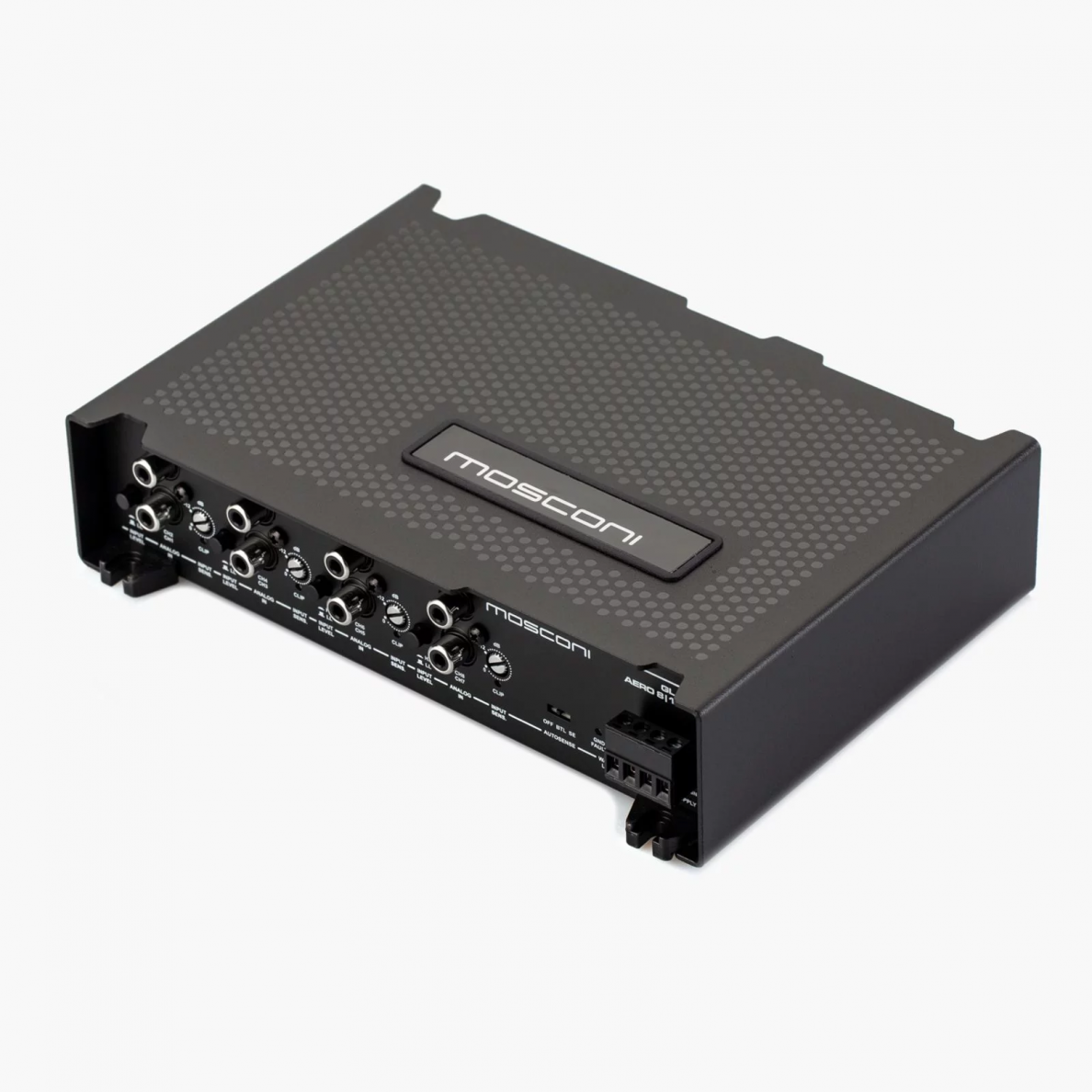

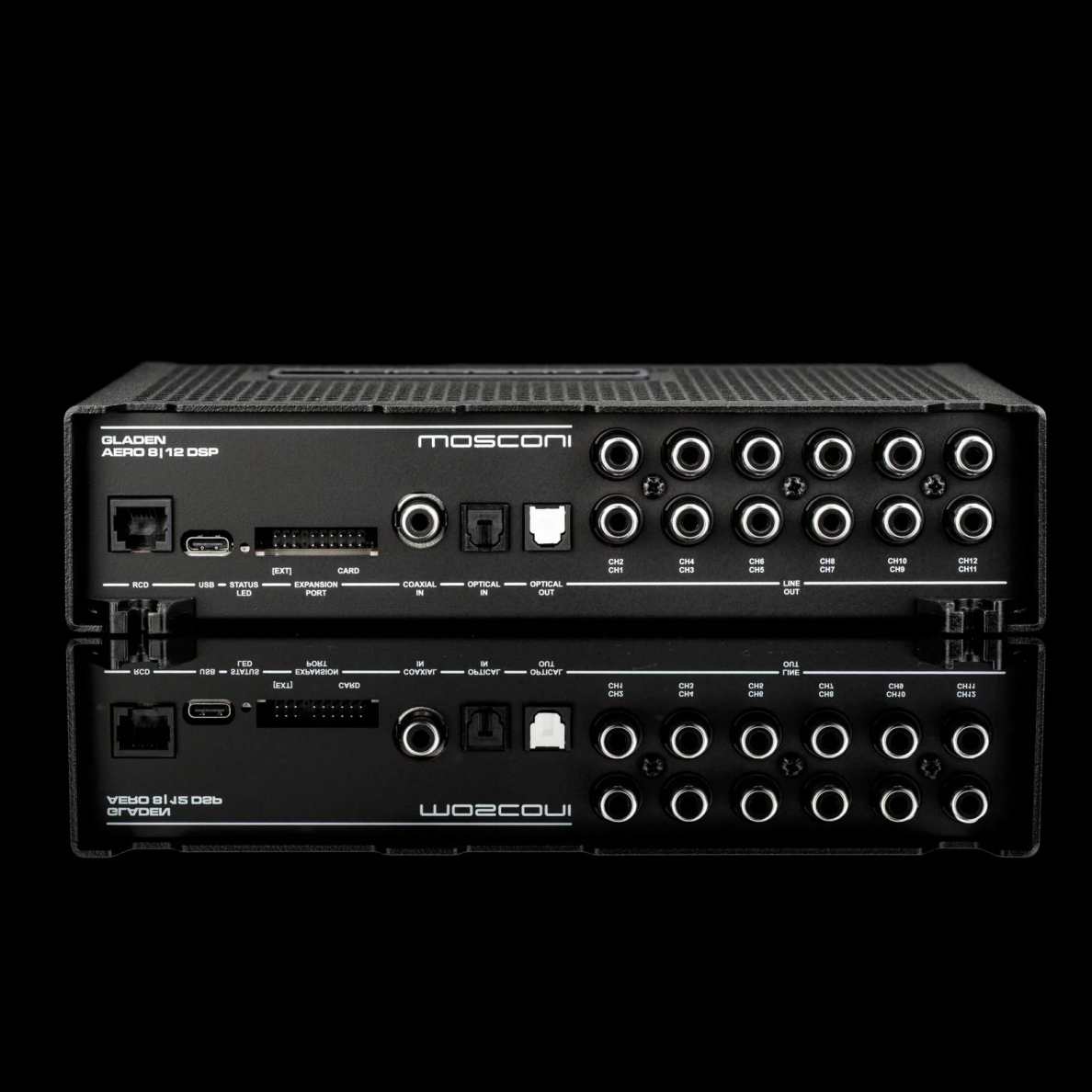

Mosconi AERO 8/12 DSP

Technical data:
INPUTS:
8 x RCA (Cinch), switchable high / low level with autosense
4 of them freely selectable as prioritized Auto-fade/Aux
1 x S/PDIF digital optical
1 x RCA digital COAX
1 x BT slot
ATOM Mixer menu with dynamic preset switching and "trigger" control

OUTPUTS:
12 x RCA analog
1 x S/PDIF optical (freely assignable, volume controlled)
12 V remote-out

EQUALIZER:
Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
Fixed: channels front (1 - 6) channels rear (9 + 10)
Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free

FILTERS:
10 per channel freely configurable, (setting without sound interruption)
Highpass, lowpass, shelf, notch, allpas, peak EQ
Slope 6 - 120 dB/Oct, variable Q, time and level

OTHER:
Compatible with BARNIE measurement system
Time correction 0 - 12 ms (0.005 ms steps) (setting without sound interruption)
Input-Delay (Channels 1 - 6) for the correction of runtime-delayed plant systems
Phase inversion 0 - 180°
Level adjustment outputs (0.5-dB steps)
Mute function
4 x preset memory (switching without sound interruption)
Dimensions: 200 x 125 x 40 mm (incl. mounting flange)
