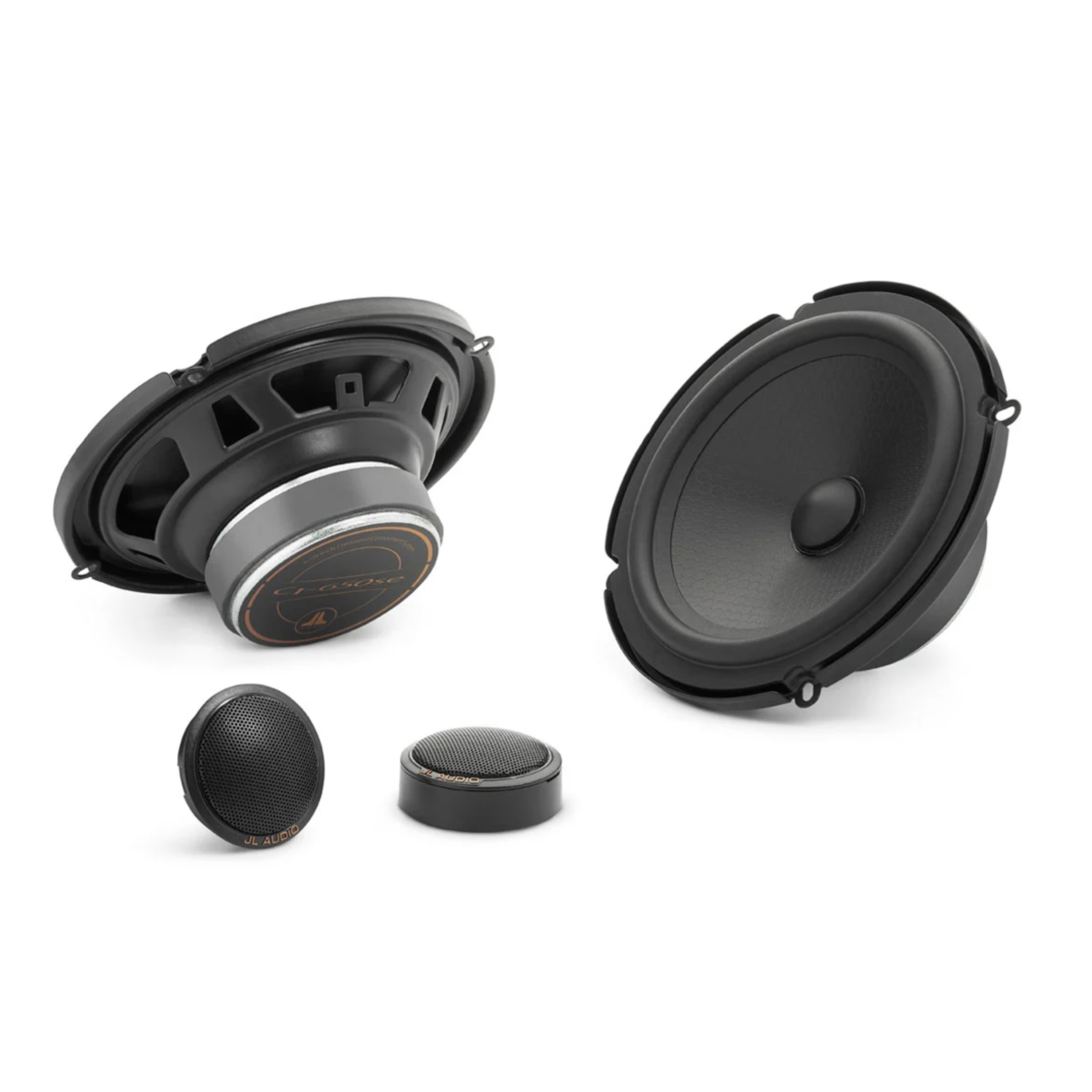

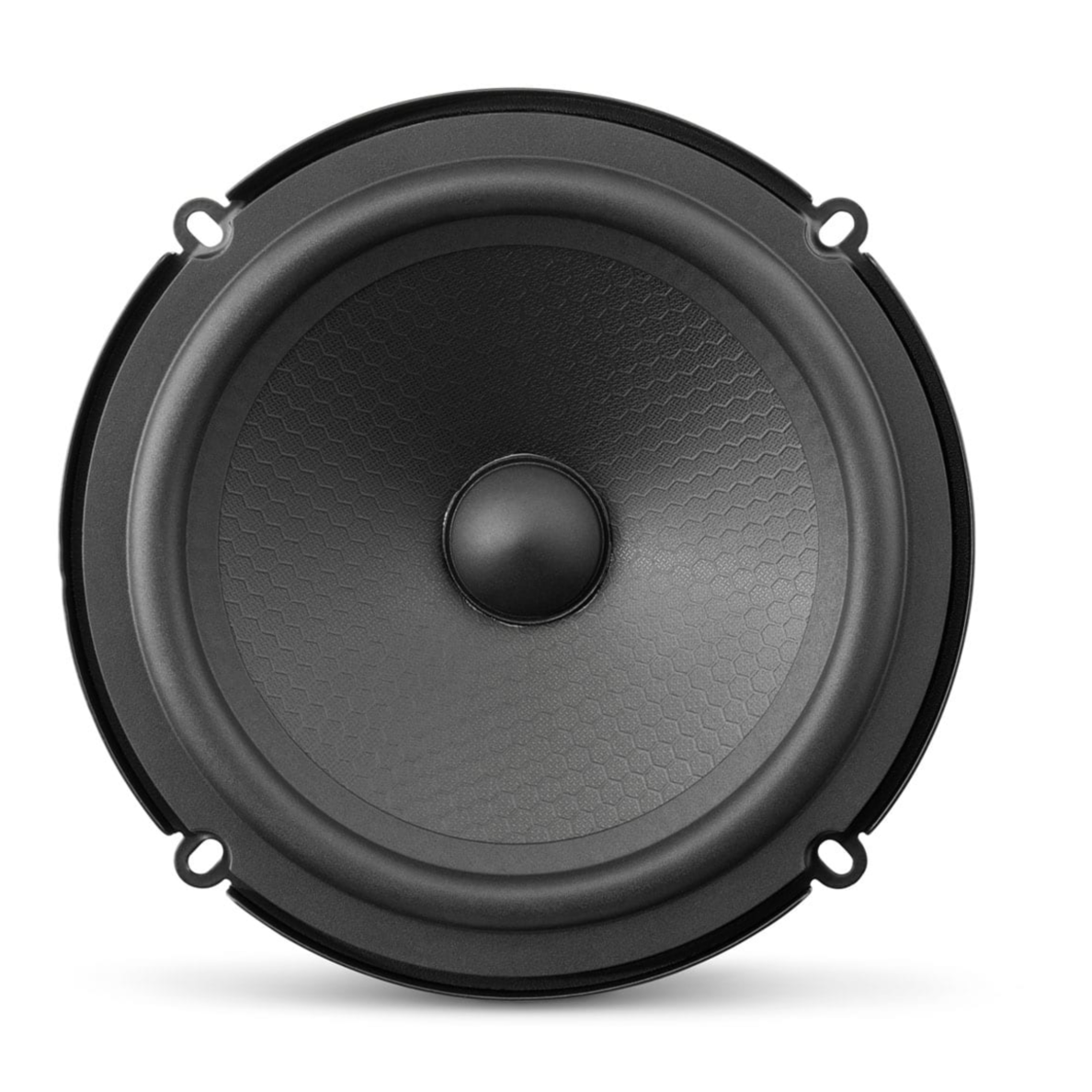

JL Audio C1-650SE

General

SIZES 6 x 9"/6.5"
CONTINUOUS POWER HANDLING (RMS) 6.5": 50 W
6 x 9": 60 W
SENSITIVITY (SPL @ 1 W/1 M) 6.5": 91 dB
6 x 9": 91.5 dB
FREQUENCY RESPONSE (+/- 3 DB) 6 x 9": 39 Hz-22 KHz
6.5": 48 Hz-24 KHz
6.5" (se): 48 Hz-21 KHz
NOMINAL IMPEDANCE 4 Ω
RECOMMENDED AMPLIFIER POWER (RMS) 6 x 9": 10-100 W/Channel
6.5": 10-75 W/Channel
VOICE COIL DIAMETER 6 x 9"/6.5" (se): 1.2" (30 mm)
6.5": 1" (25 mm)
CONE MATERIAL Mineral-filled polypropylene
TWEETER TYPE Aluminum Dome
TWEETER SIZE 6 x 9"/6.5" (se): 1" (25 mm)
6.5": 0.75" (19 mm)
GRILLE(S) INCLUDED Tweeters only
WARRANTY 1 year

Connections

SPEAKER CONNECTIONS Spade connectors

Mounting Dimensions

FRAME OUTER DIAMETER 6 x 9": 6.38 x 9.33" (162 x 237 mm)
6.5": 6.25" (159 mm)
MOUNTING DEPTH CLEARANCE 6 x 9": 2.75" (70 mm)
6.5": 2.07" (53 mm)
MOUNTING HOLE 6.5": 5.02" (128 mm)
MOTOR OUTER DIAMETER 6 x 9": 3.54" (90 mm)
6.5": 3.15" (80 mm)

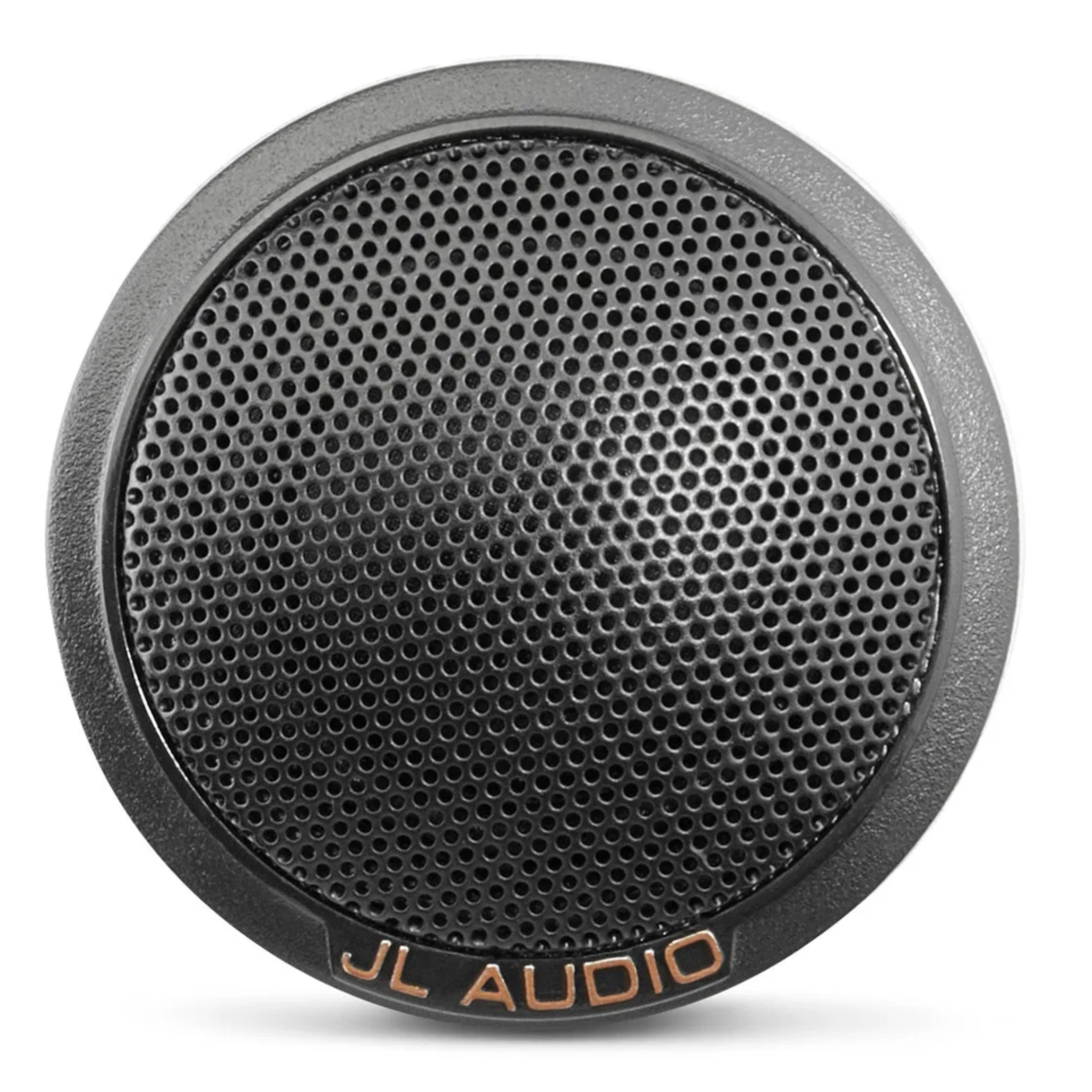

Tweeter Specifications

FLUSH MOUNT FIXTURE DIAMETER 6.5": 1.67" (42 mm)
6.5" (se)/6" x 9": 1.97" (50 mm)
SURFACE MOUNT FIXTURE DIAMETER 6.5": 1.71" (43 mm)
6.5" (se)/6" x 9": 2.01" (51 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER 6.5": 1.46" (37 mm)
6.5" (se)/6" x 9": 1.75" (45 mm)
FLUSH MOUNT MOUNTING DEPTH 0.40" (10 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION 6.5": 0.23" (6 mm)
6.5" (se)/6" x 9": 0.32" (8 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION 6.5": 0.76" (19 mm)
6.5" (se)/6" x 9": 0.87" (22 mm)

Crossover Specifications

WIDTH 1.96" (50 mm)
6.5" (se) (features both crossovers): 2.53" (64 mm
HEIGHT 0.90" (23 mm)
6.5" (se) (features both crossovers): 1.93 (49 mm)
DEPTH 1.34" (34 mm)
6.5" (se) (features both crossovers): 1.09" (28 mm)
