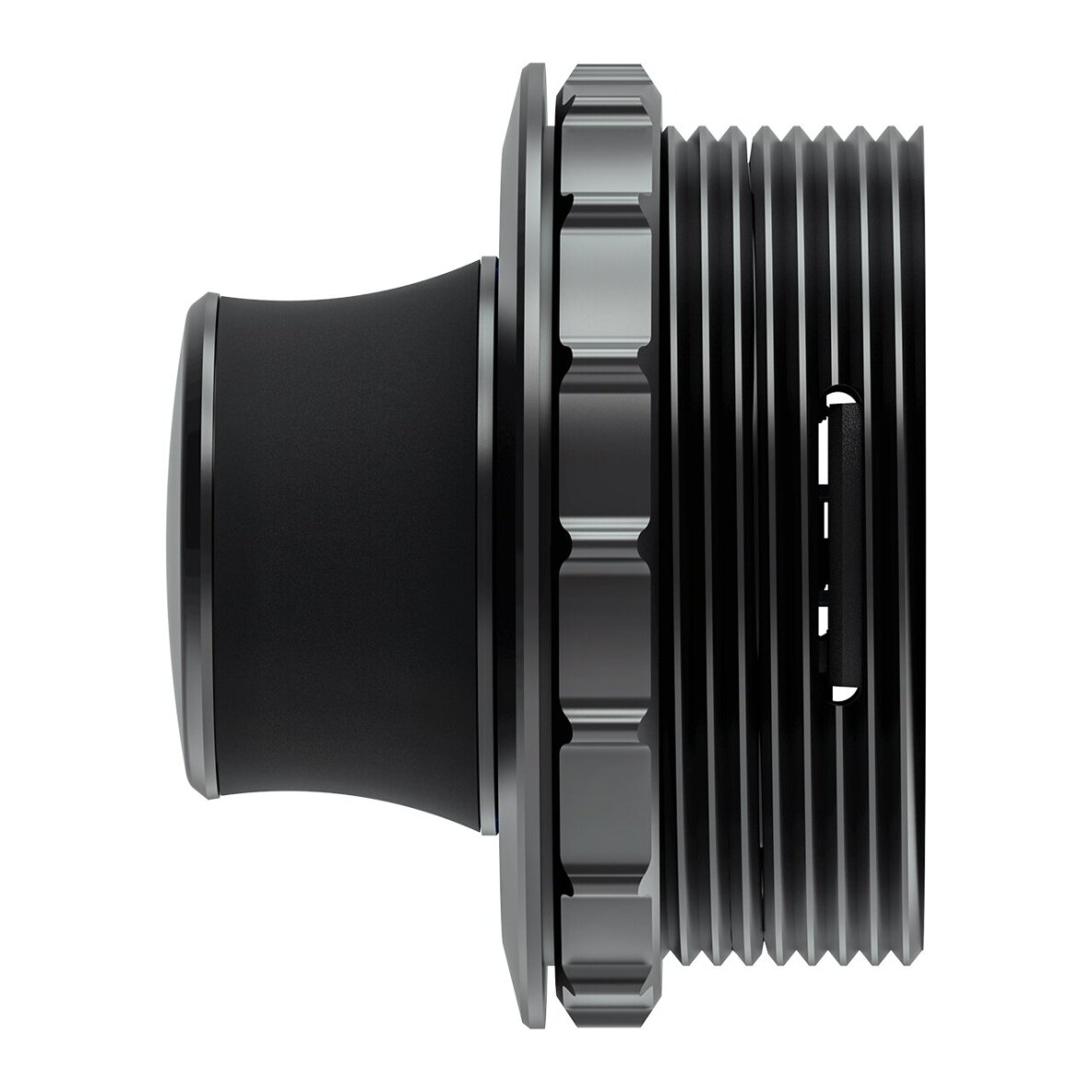

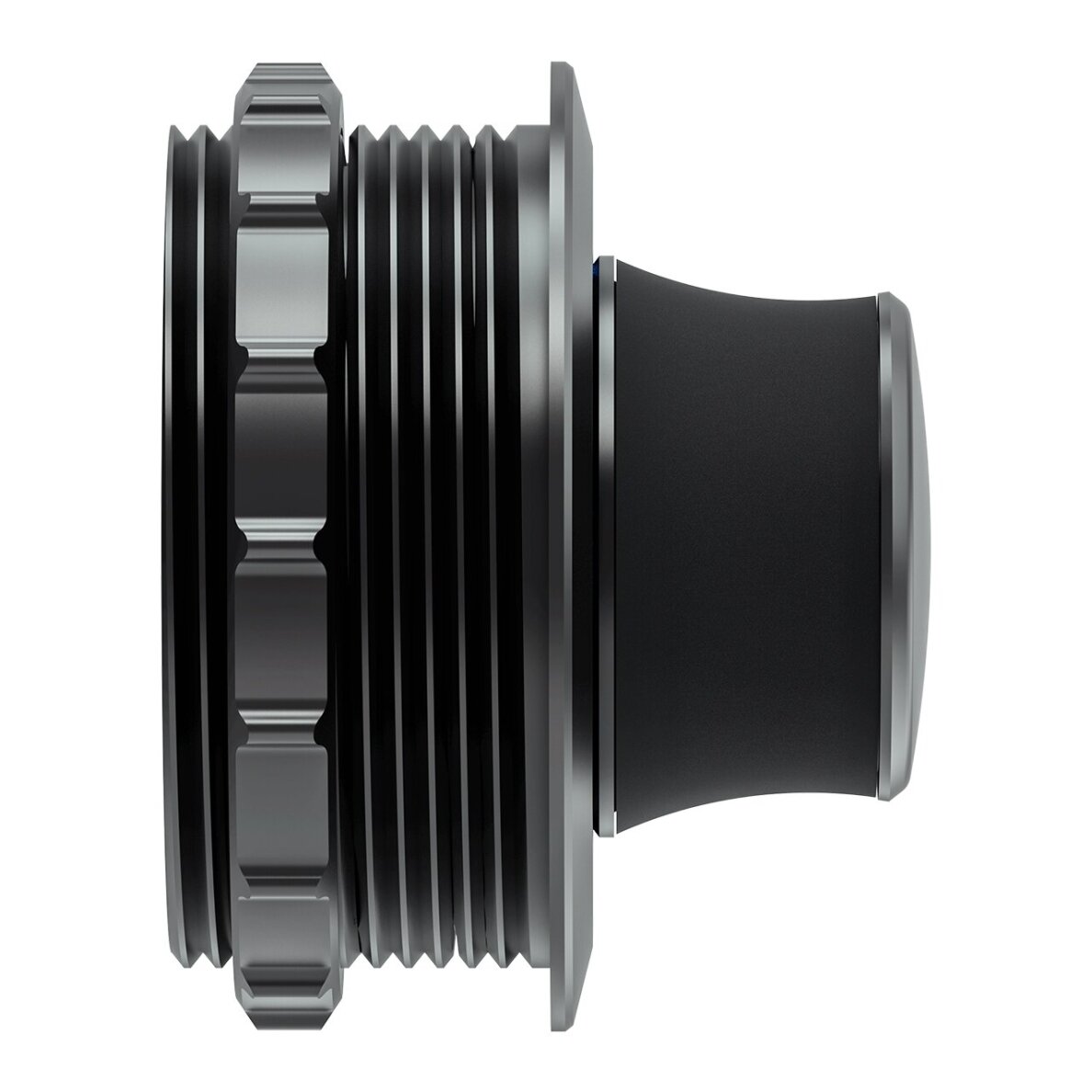

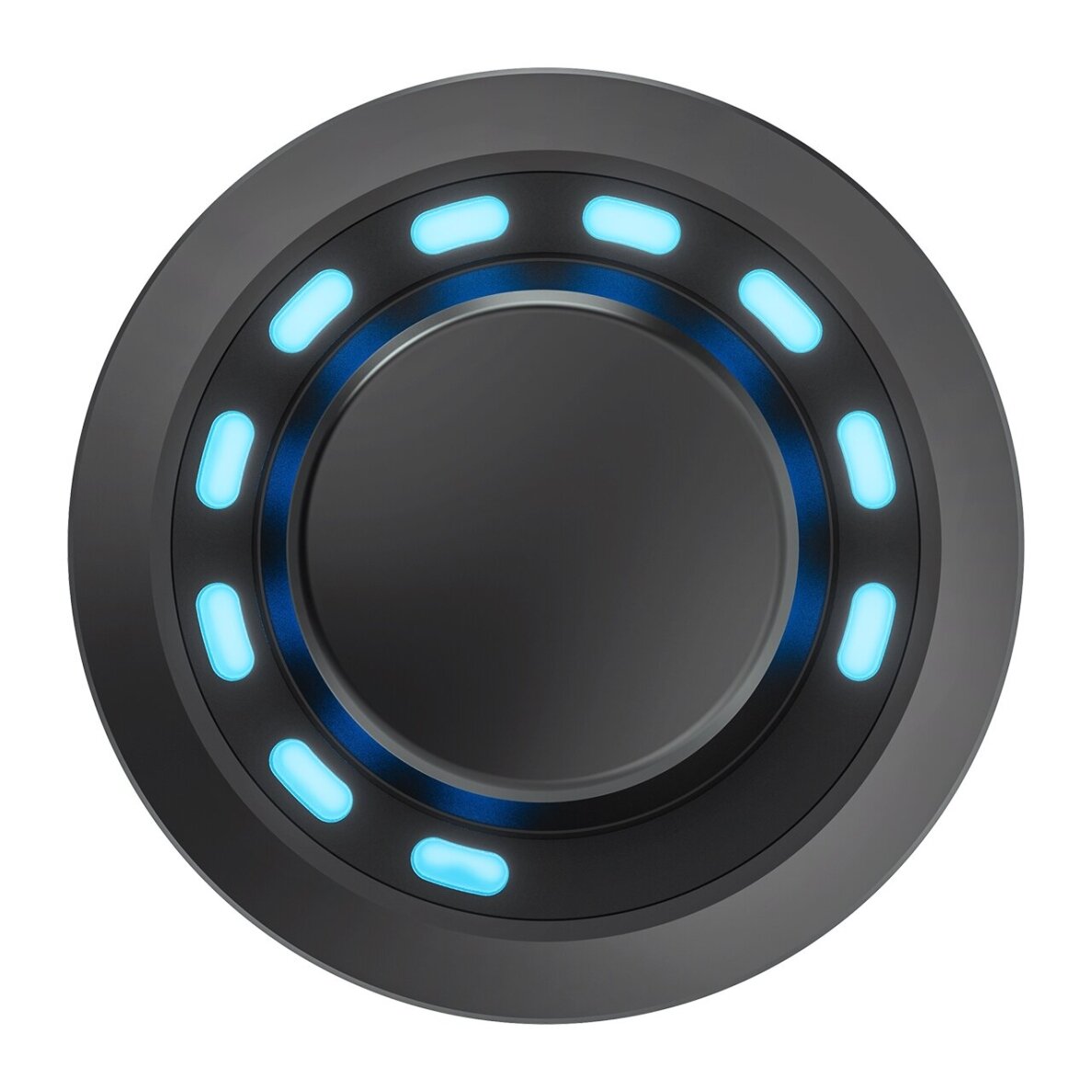

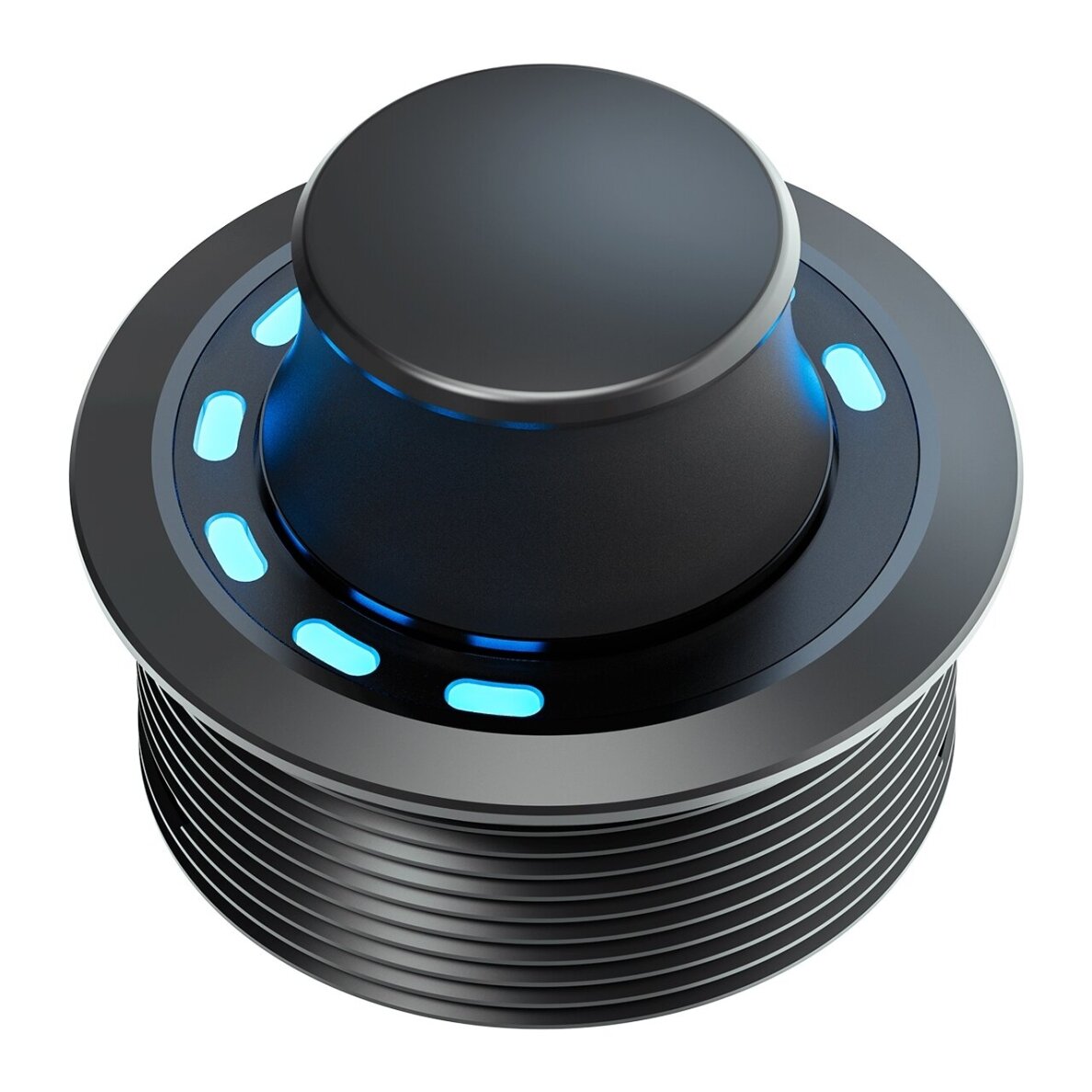

Helix Conductor PRO

Technical data

Housing Aluminum housing with ergonomic rotary knob with rubber-touch surface on the side
Hardware Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processor
Connection SCP (Smart Control Port) / no separate power supply required
Cable length 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable
Dimensions (Ø x H) Ø 46 x 36 mm / Ø 1.81 x 1.42”
Installation depth 18 mm / 0.71"
Compatibility

All BRAX, HELIX and MATCH DSP devices featuring ACO platform and SCP (Smart Control Port)
The CONDUCTOR PRO cannot be combined with another control unit
Scope of delivery

1 x Remote control CONDUCTOR PRO
1 x Mounting ring
1 x 16.4 ft / 5 m connection cable for SCP (Smart Control Port)
