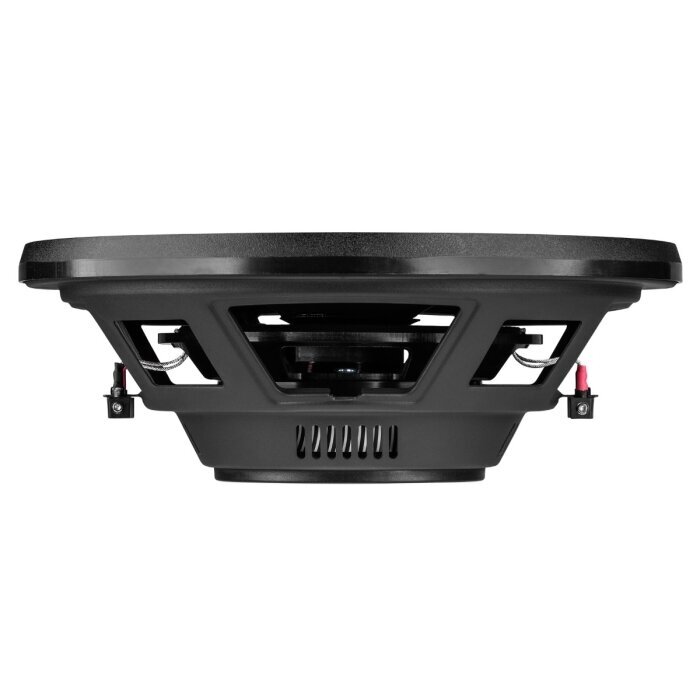

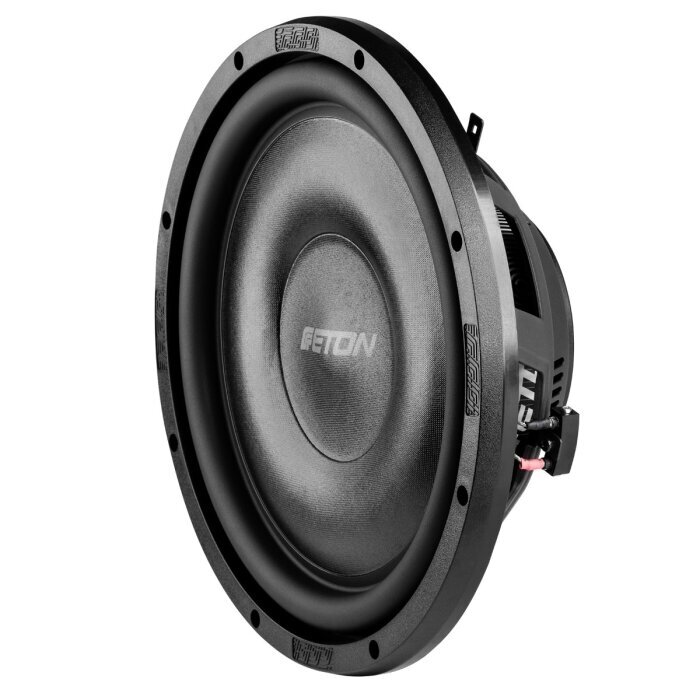

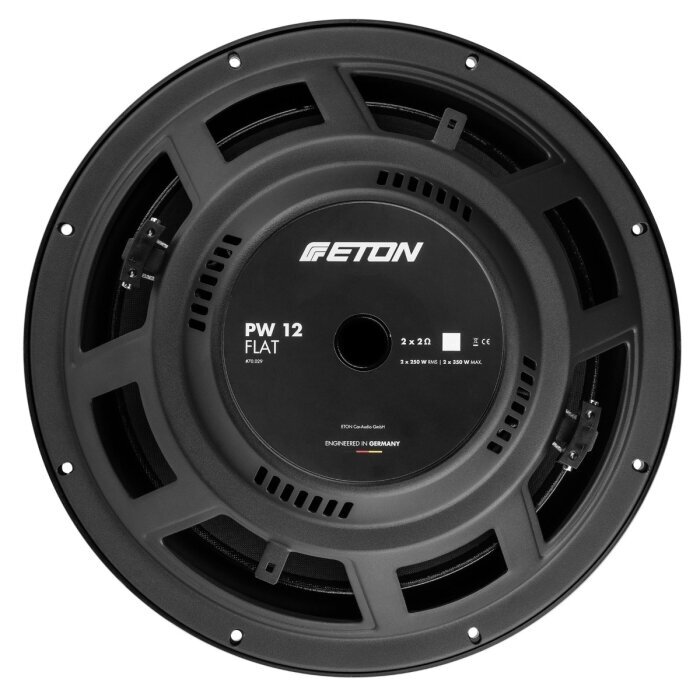

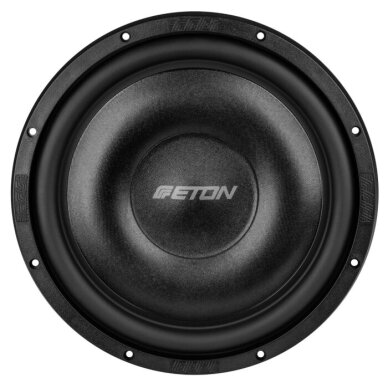

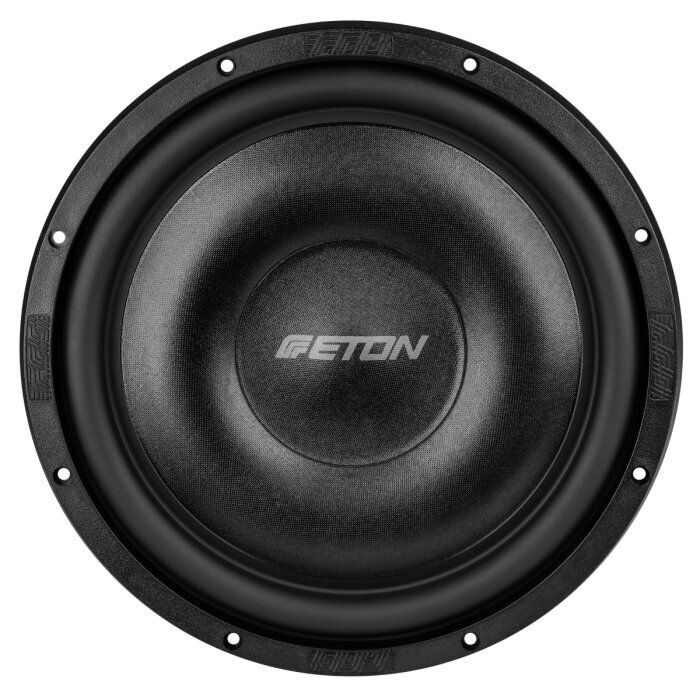

Eton PW12 FLAT

Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
213.0
g
DC resistance
Re
3.6
Ω
Effective piston area
SD
510
cm2
Voice coil inductance
Le
3.05
mH
Resonance frequency TSP
fr
37.6
Hz
Force factor
BLxl
18.60
Tm
Suspension compliance
CMS
0.08
mm/N
Mechanical Q
QMS
8.75
Xmax mechanical
+/-
30.0
mm
Electrical Q
QES
0.56
Equivalent air vol. of suspension
VAS
31.02
dm3
Total Q
QTS
0.56
Characteristic SPL 1W / 1 m
86.5
dB
Mechanical resistance
RMS
5.10
kg/s
Rated power
500/700
W
magnet material
-
Ferrit
-
voice coil diameter
50
mm
