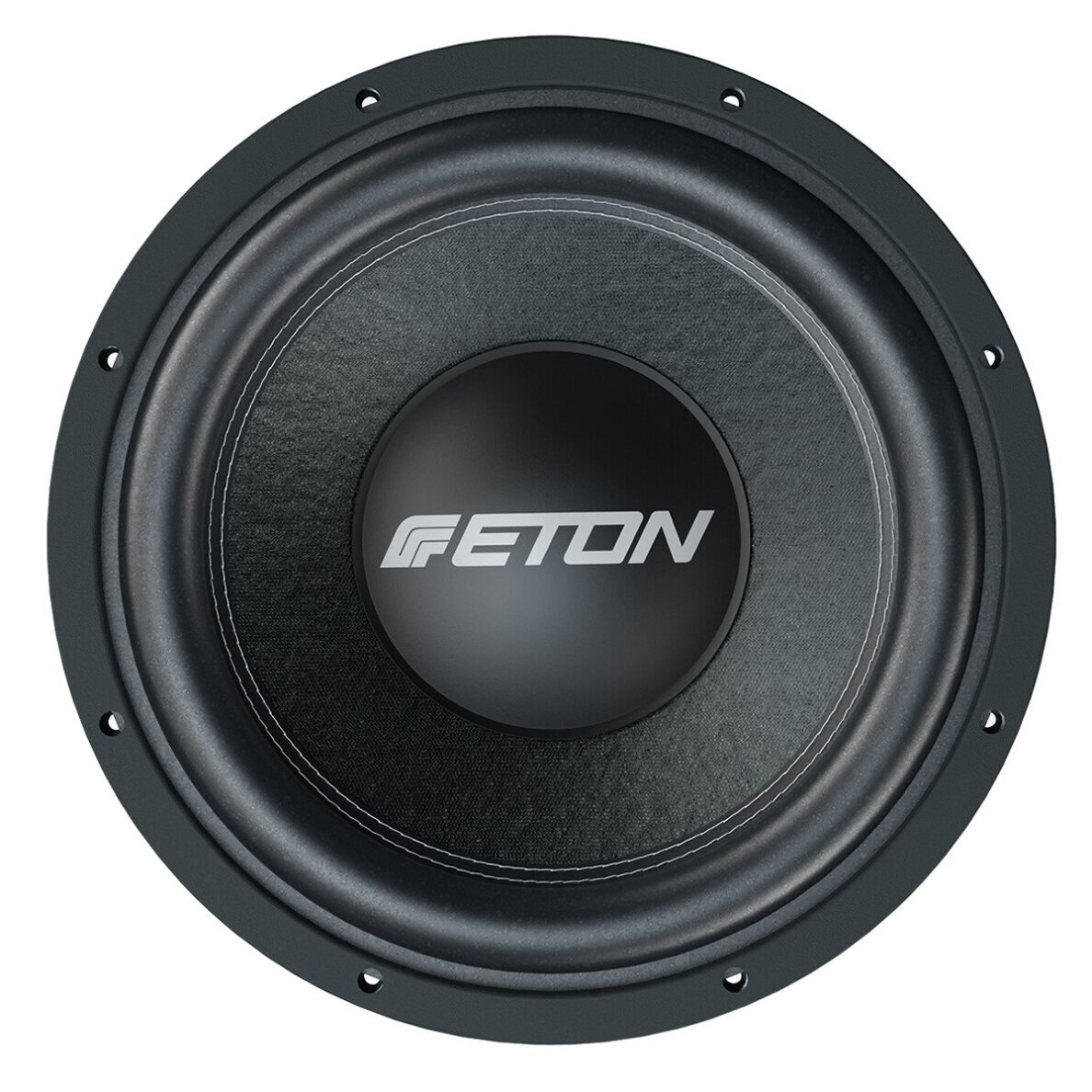

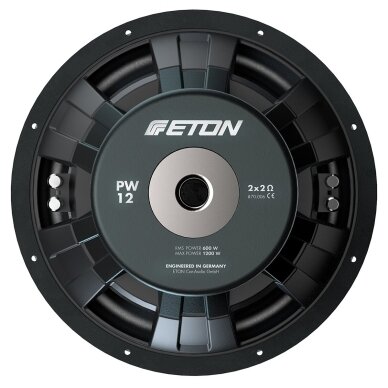

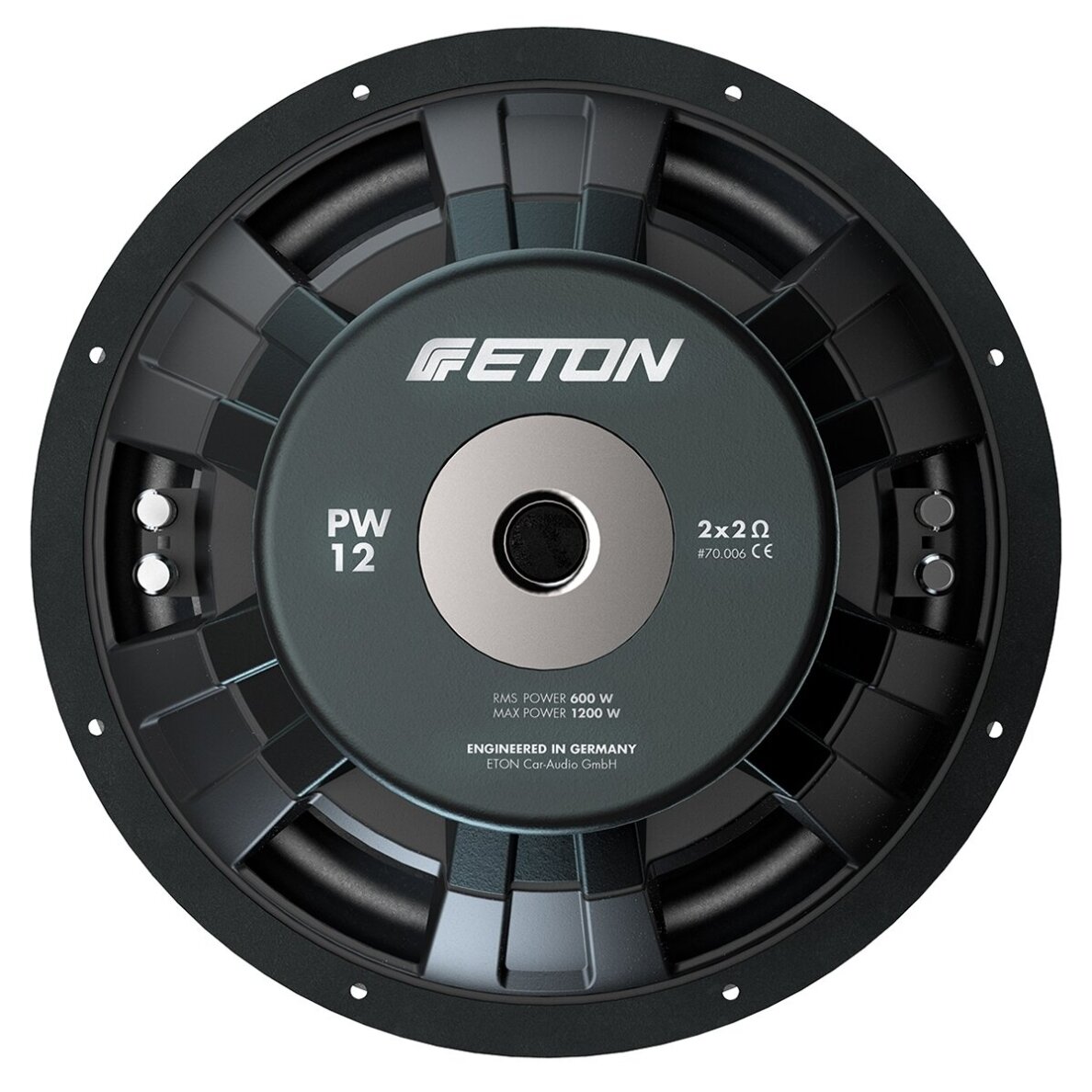

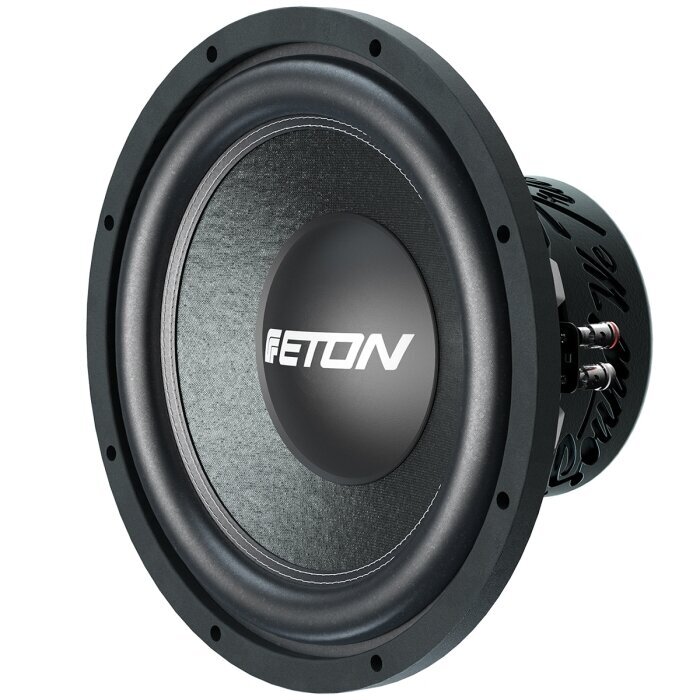

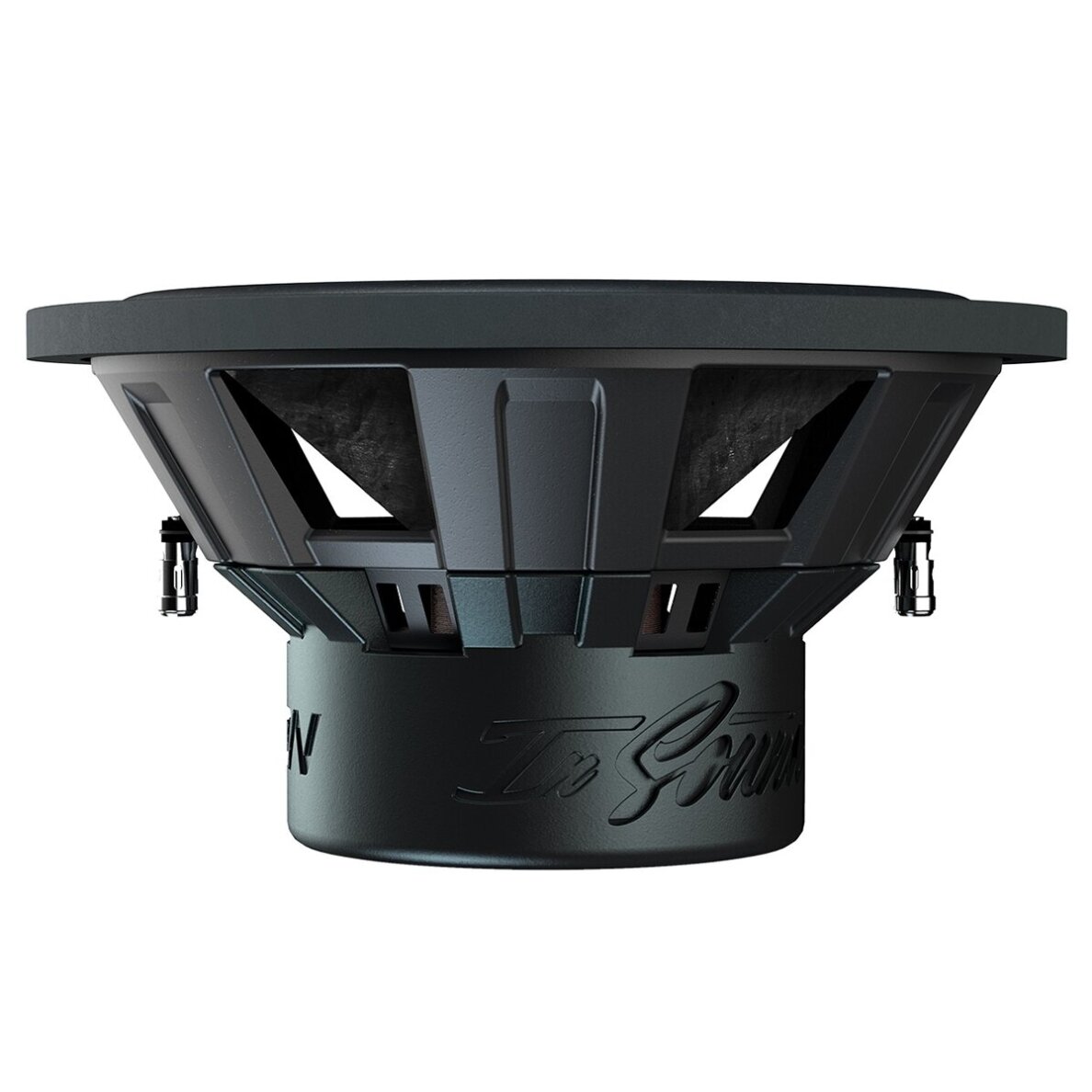

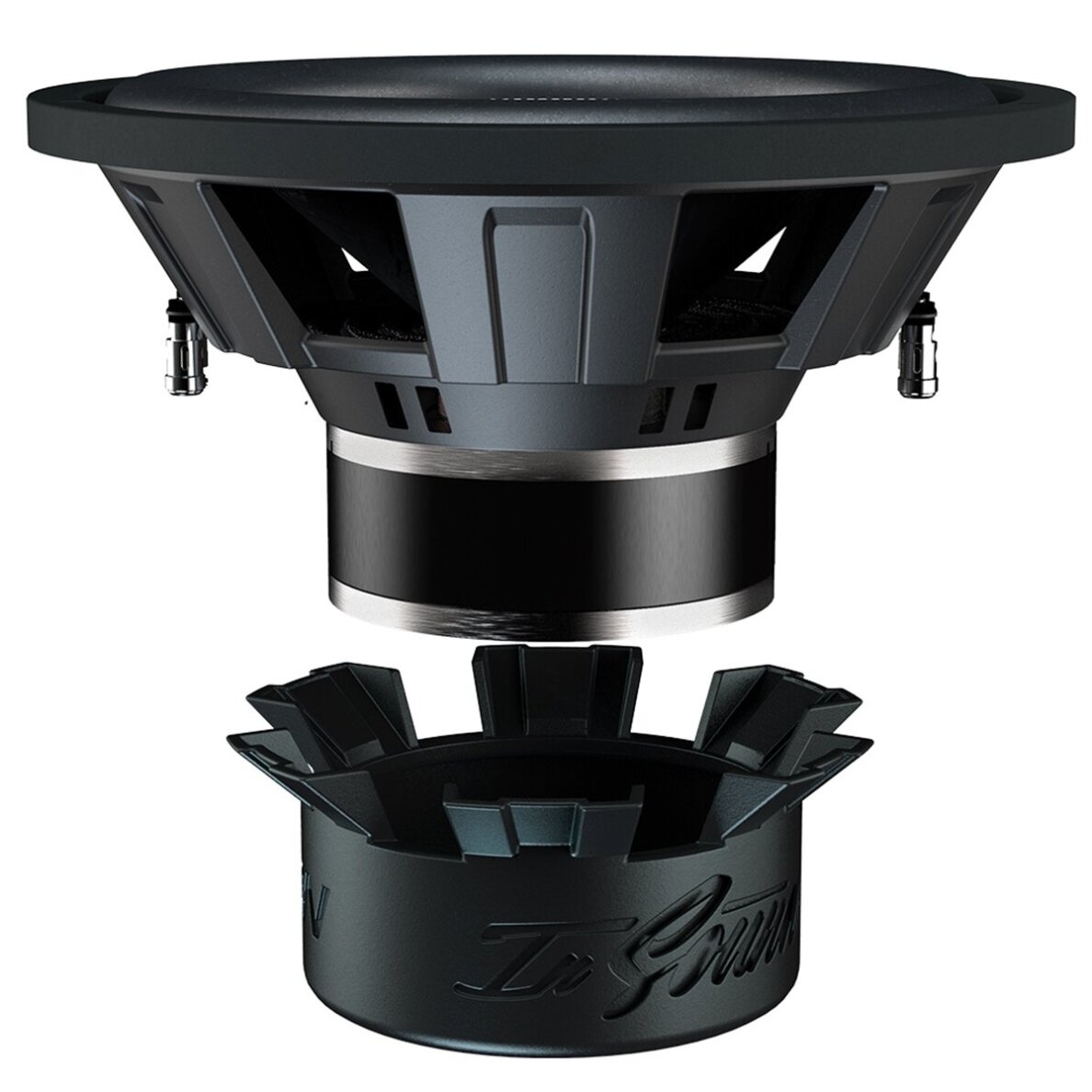

Eton PW12

Nominal impedance Zn 2x2 Ω
Total moving mass (incl. air mass)
MMD
208.0
g
DC resistance
Re
3.8
Ω
Effective piston area
SD
502
cm2
Voice coil inductance
Le
1.49
mH
Resonance frequency TSP
fr
31.6
Hz
Force factor
BLxl
17.91
Tm
Suspension compliance
CMS
0.12
mm/N
Mechanical Q
QMS
5.73
Xmax mechanical
+/-
42
mm
Electrical Q
QES
0.52
Equivalent air vol. of suspension
VAS
43.72
dm3
Total Q
QTS
0.46
Characteristic SPL 1W / 1 m
87
dB
Mechanical resistance
RMS
7.20
kg/s
Rated power
600/1200
W
magnet material
-
Ferrit
-
voice coil diameter
63
mm
