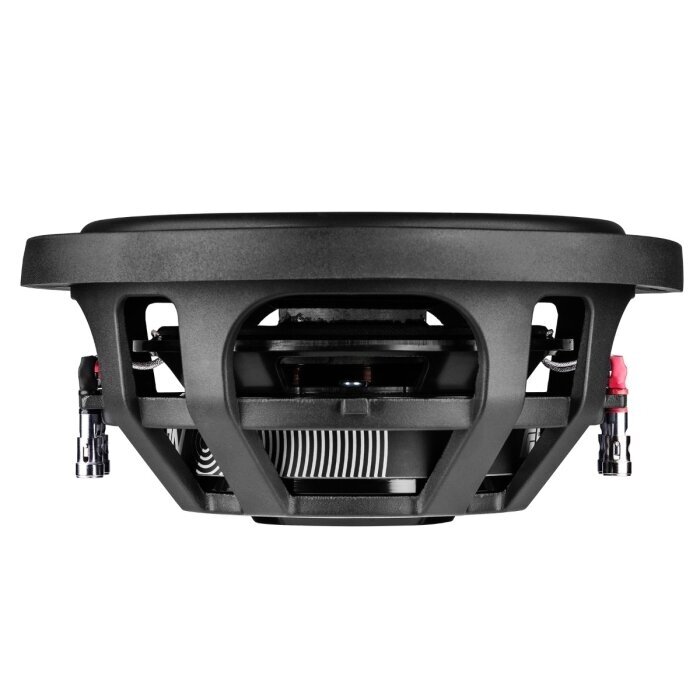

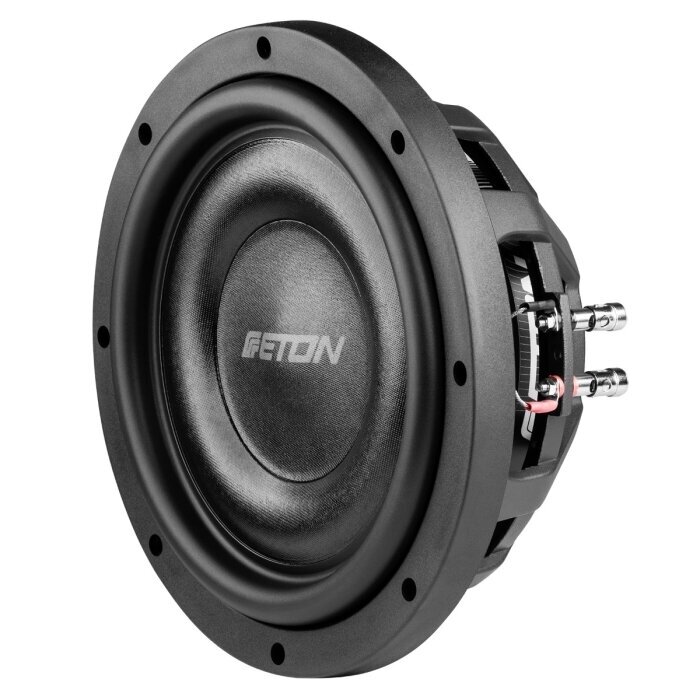

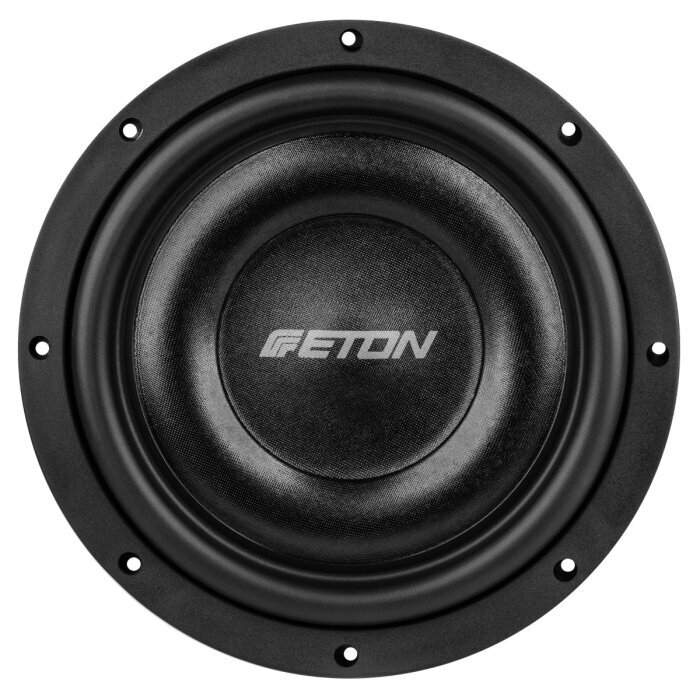

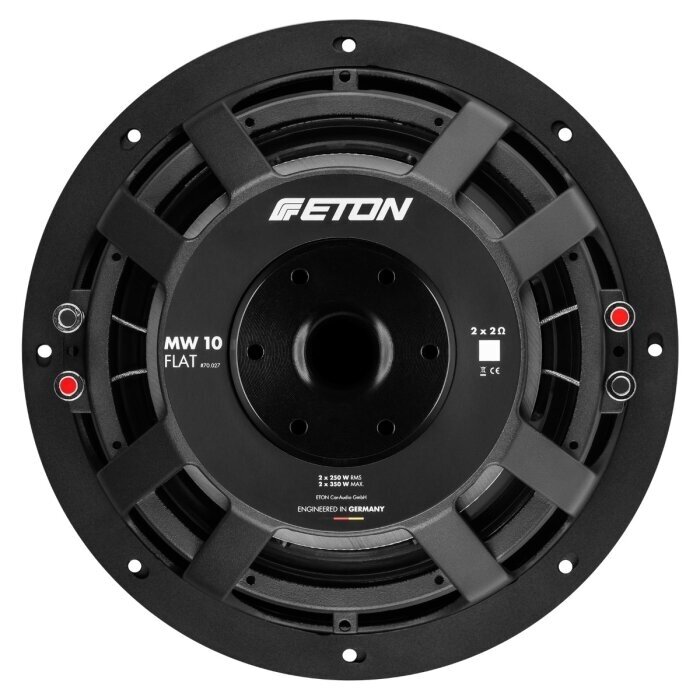

Eton MW10 FLAT

Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
176.77
g
DC resistance
Re
3.8
Ω
Effective piston area
SD
346
cm2
Voice coil inductance
Le
3.23
mH
Resonance frequency TSP
fr
34.2
Hz
Force factor
BLxl
18.67
Tm
Suspension compliance
CMS
0.12
mm/N
Mechanical Q
QMS
5.34
Xmax mechanical
+/-
38.0
mm
Electrical Q
QES
0.48
Equivalent air vol. of suspension
VAS
20.81
dm3
Total Q
QTS
0.44
Characteristic SPL 1W / 1 m
84
dB
Mechanical resistance
RMS
6.67
kg/s
Rated power
500/700
W
magnet material
Ferrit
voice coil diameter
63
mm
