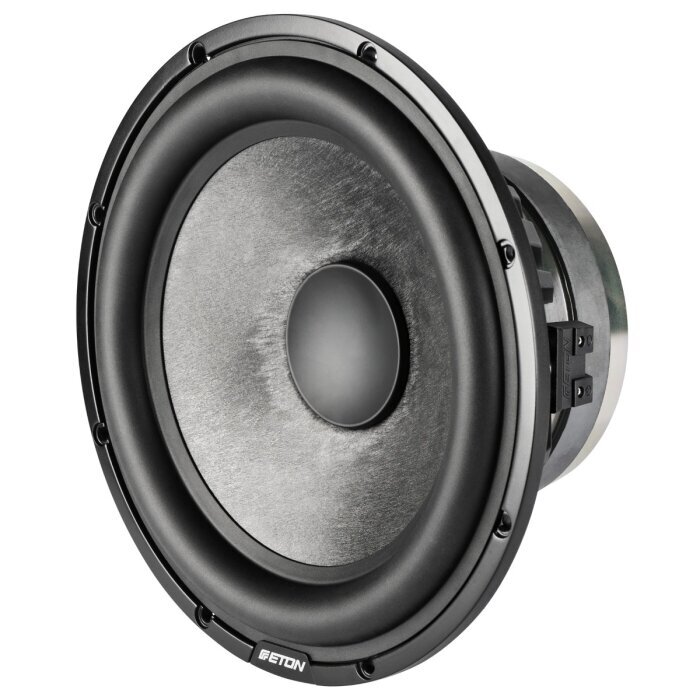

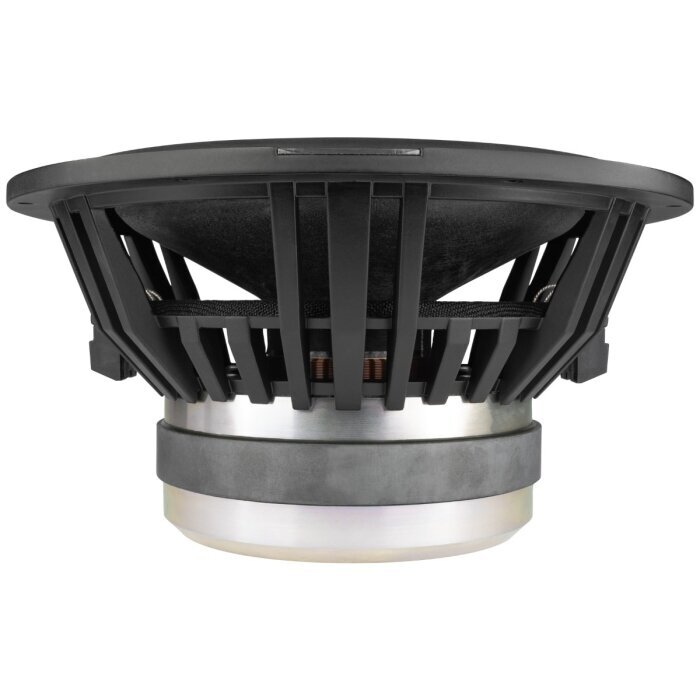

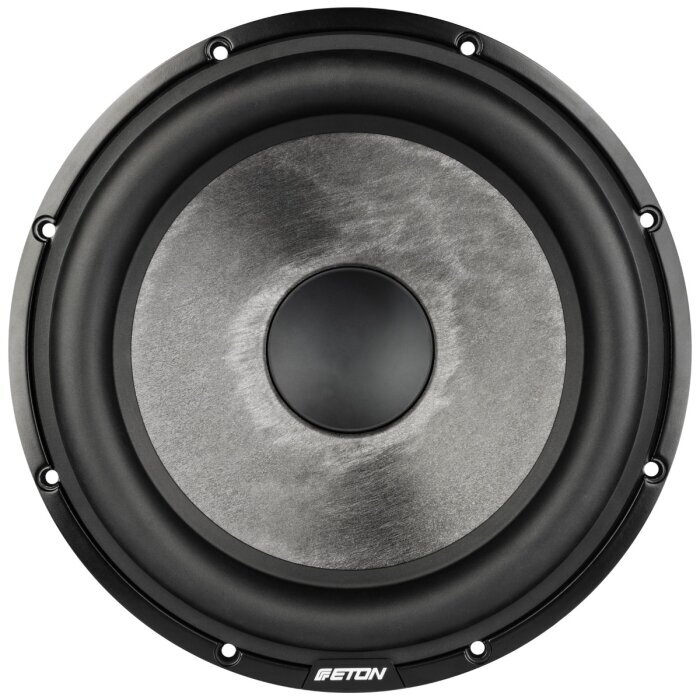

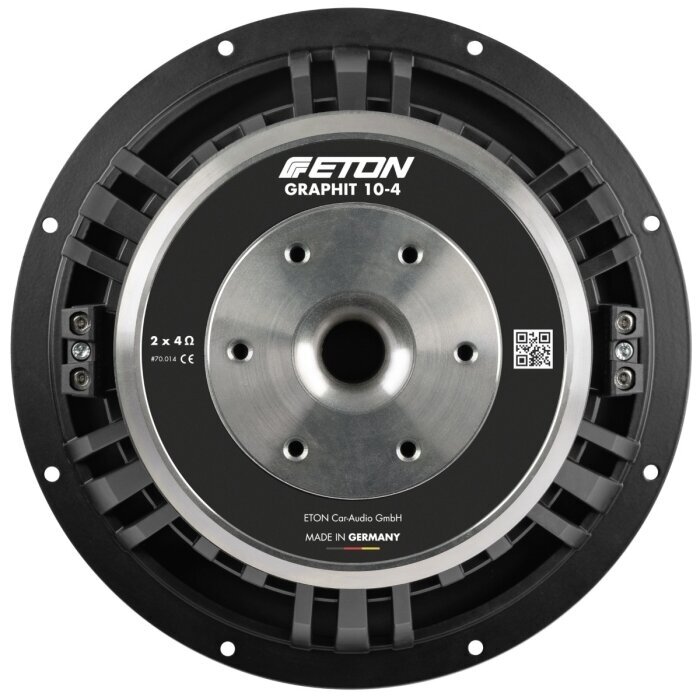

Eton Graphit 10-4

Nominal impedance
Zn
2x4
Ω
Total moving mass (incl. air mass)
MMD
154.0
g
DC resistance
Re
6.7
Ω
Effective piston area
SD
340
cm2
Voice coil inductance
Le
4.37
mH
Resonance frequency TSP
fr
25.4
Hz
Force factor
BLxl
19.43
Tm
Suspension compliance
CMS
0.25
mm/N
Mechanical Q
QMS
6.53
Xmax mechanical
+/-
40.0
mm
Electrical Q
QES
0.44
Equivalent air vol. of suspension
VAS
41.0
dm3
Total Q
QTS
0.41
Characteristic SPL 1W / 1 m
84
dB
Mechanical resistance
RMS
3.80
kg/s
Rated power
600/1000
W
magnet material
Ferrit
voice coil diameter
63
mm
