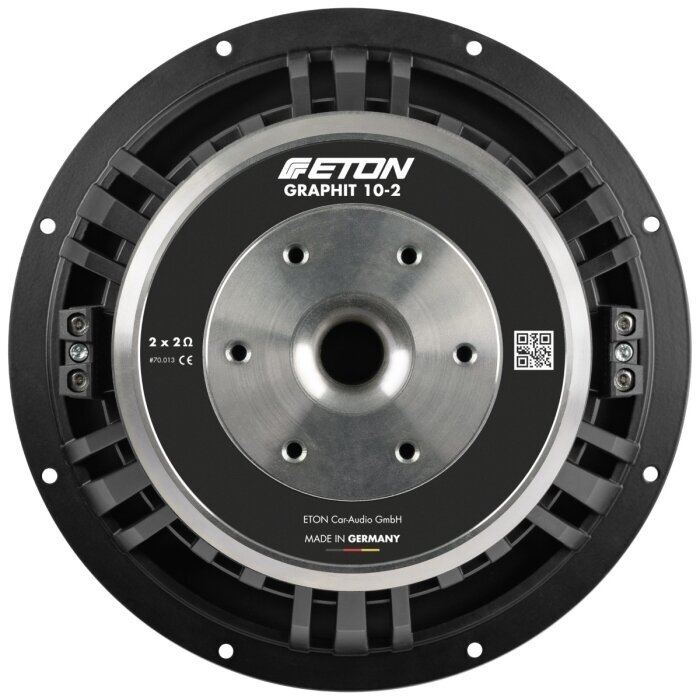

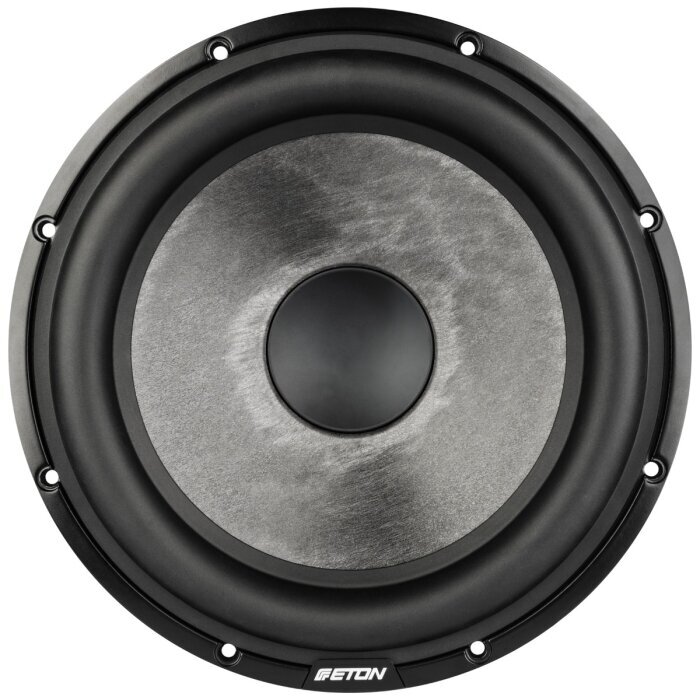

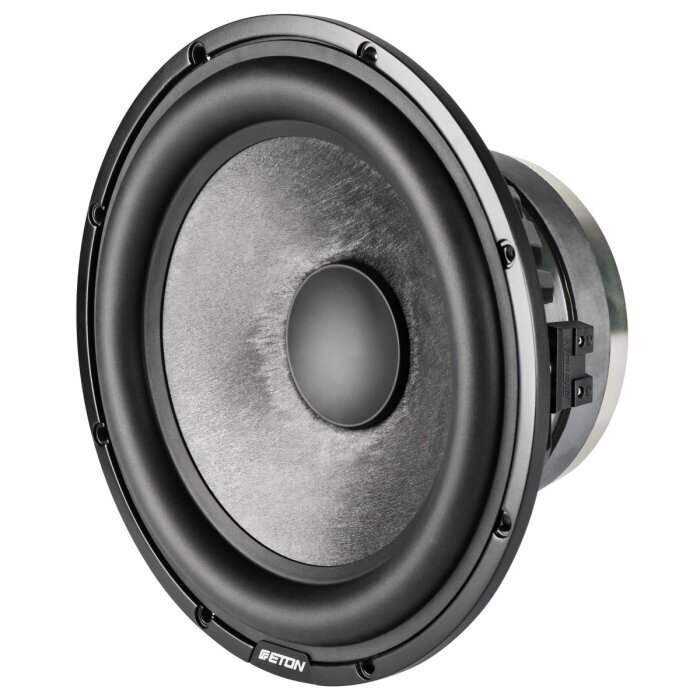

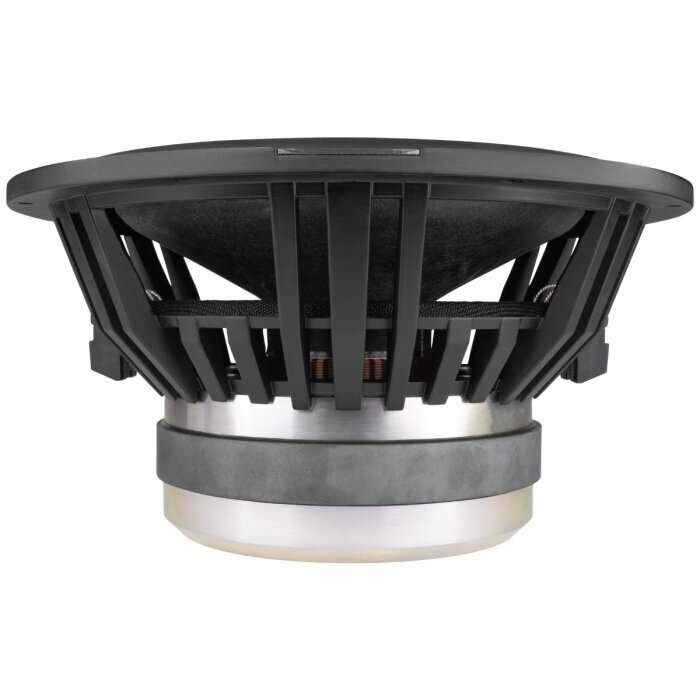

Eton Graphit 10-2

Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
167.0
g
DC resistance
Re
3.9
Ω
Effective piston area
SD
340
cm2
Voice coil inductance
Le
2.97
mH
Resonance frequency TSP
fr
23.2
Hz
Force factor
BLxl
15.22
Tm
Suspension compliance
CMS
0.28
mm/N
Mechanical Q
QMS
6.52
Xmax mechanical
+/-
40.0
mm
Electrical Q
QES
0.41
Equivalent air vol. of suspension
VAS
46.0
dm3
Total Q
QTS
0.39
Characteristic SPL 1W / 1 m
83.5
dB
Mechanical resistance
RMS
3.70
kg/s
Rated power
600/1000
W
magnet material
Ferrit
voice coil diameter
63
mm
