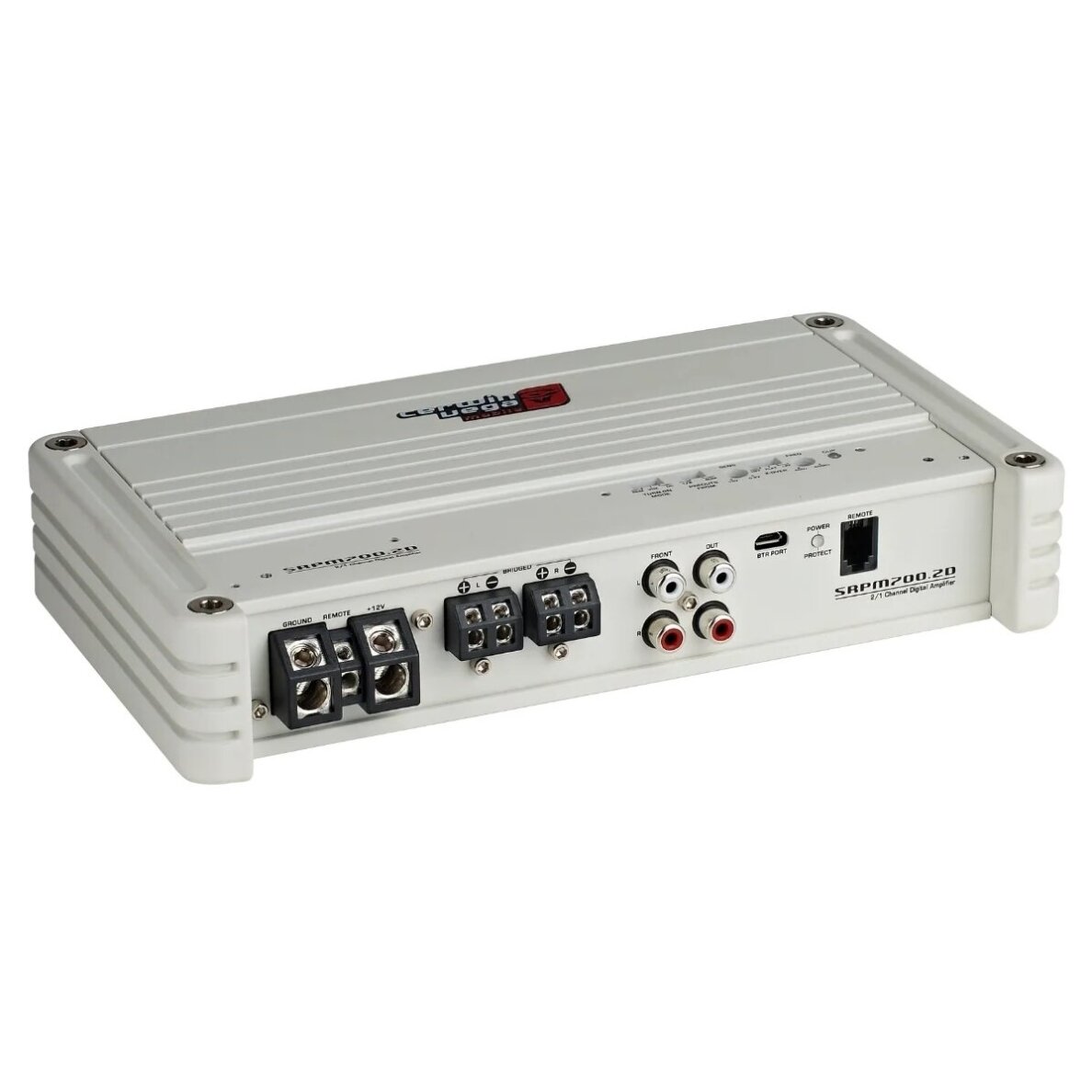

Cerwin Vega SRPM700.2DW

Specifications:
Stroker RPM Series 2-Channel Full Range Amplifier (White)

Power Rating (RMS)

Power @ 2Ω: 350W x 2
Power @ 4Ω: 200W x 2
Power Bridged @ 4Ω: 700W x 1
Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion

THD 4 (1KHZ @4Ω): 0.05%
S/N Ratio (A weighted @1W): 77.2 dBA
S/N Ratio (A weighted @FP): 98.9 dBA
Input Sensitivity

Low Level Input: 0.2mV-10.0V
High Level Input: Up to 25W RMS
Input Impedance

Low Level Input: 22KΩ
Output Stage

Output Impedance: 0.047Ω
Damping Factor (50Hz@4Ω): >250
Bandwidth (-3db): 10Hz-35Hz
Crossover (1-12dB/Oct)

Variable High-Pass: 40Hz-400Hz
Variable low-Pass: 40Hz-400Hz
Dimensions

Length x Width x Height: 8.66”x5.28”x1.75” (220mm x 134mm x 44.5 mm)
FEATURES

Selectable X-over: Low Pass/Flat/High Pass
Selectable Turn On Mode: REM/VOX/DC
LED Power/Protect Light Indicator
Output Clipping Indicator - Helps Set Gains
MFR #: SRPM700.2DW
