  •   Cerwin Vega CVPM1000.1D

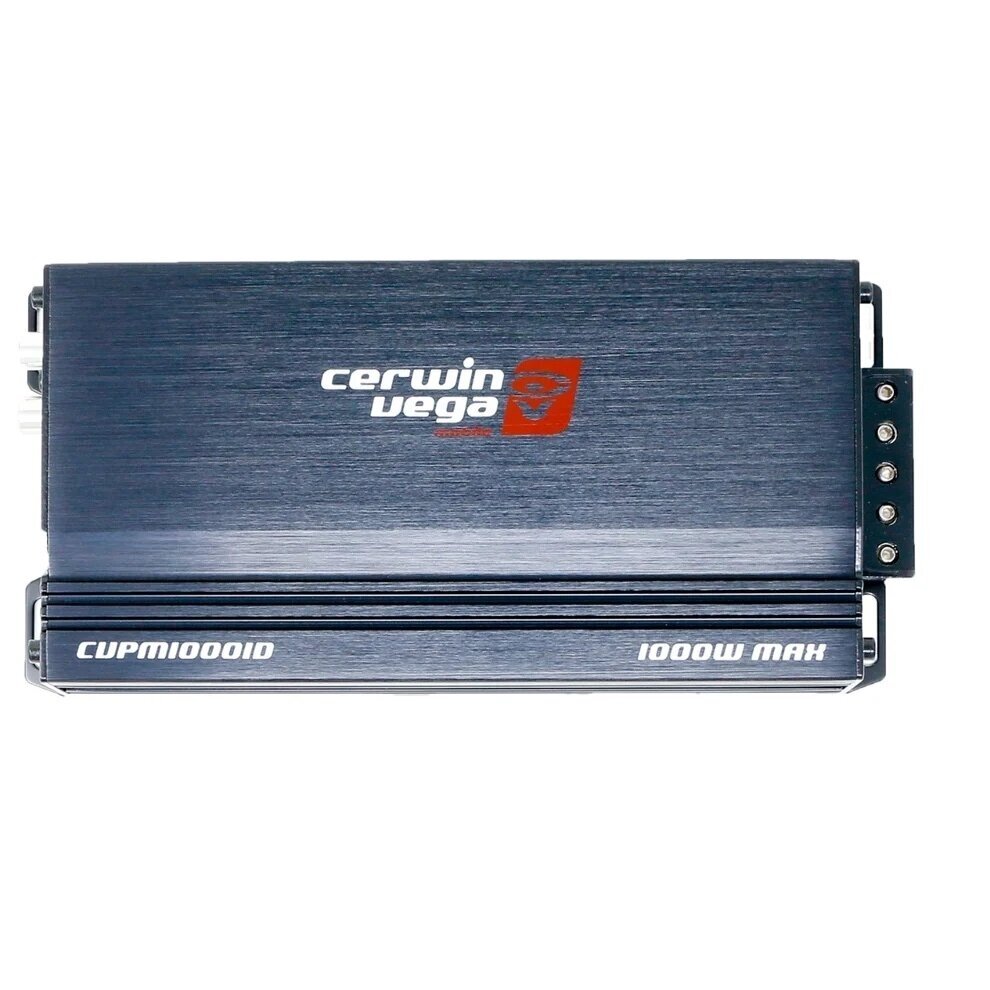

      Cerwin Vega CVPM1000.1D 1

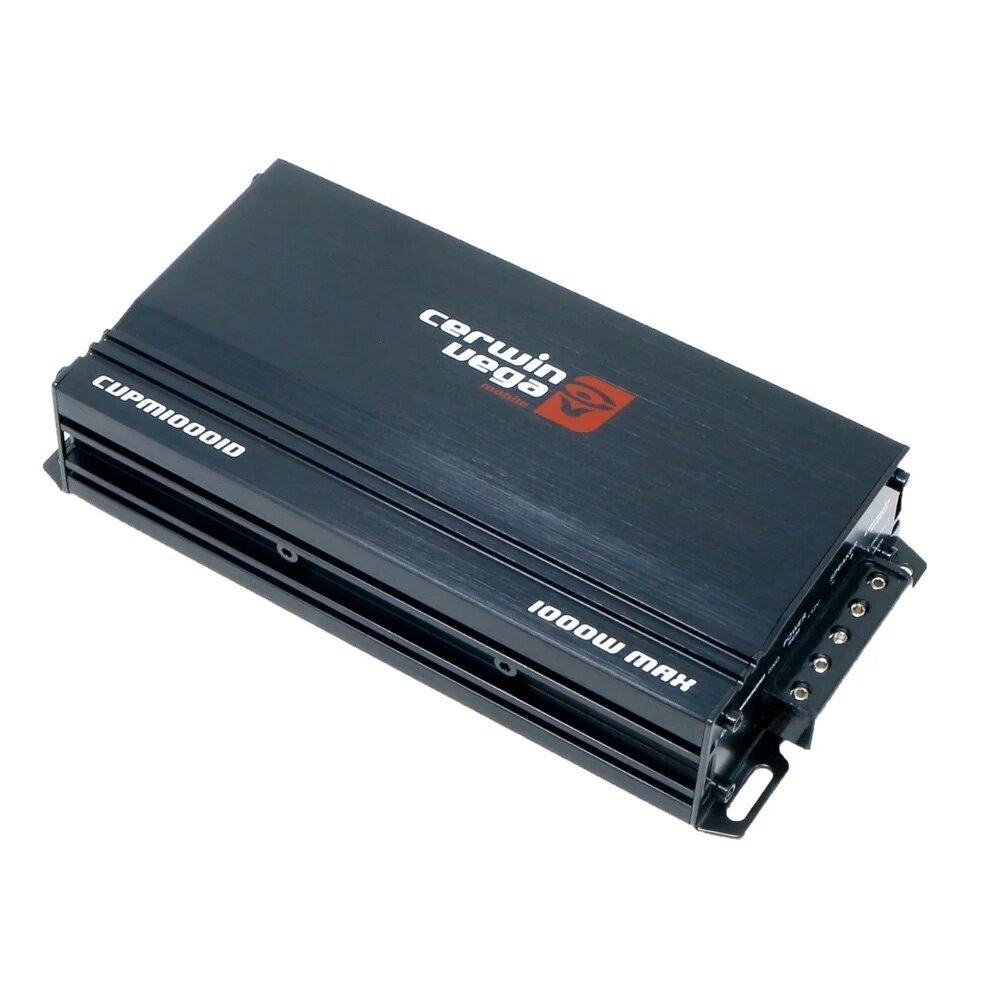

      Cerwin Vega CVPM1000.1D 2

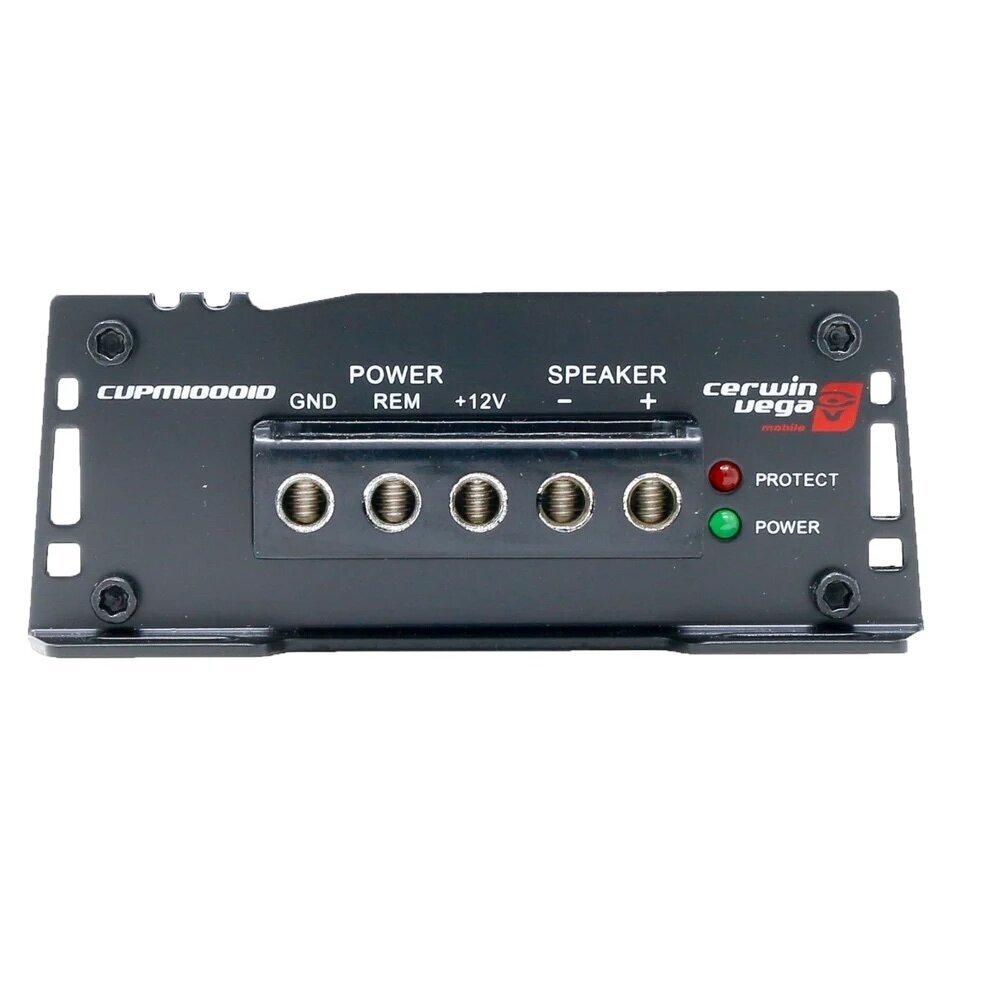

      Cerwin Vega CVPM1000.1D 3

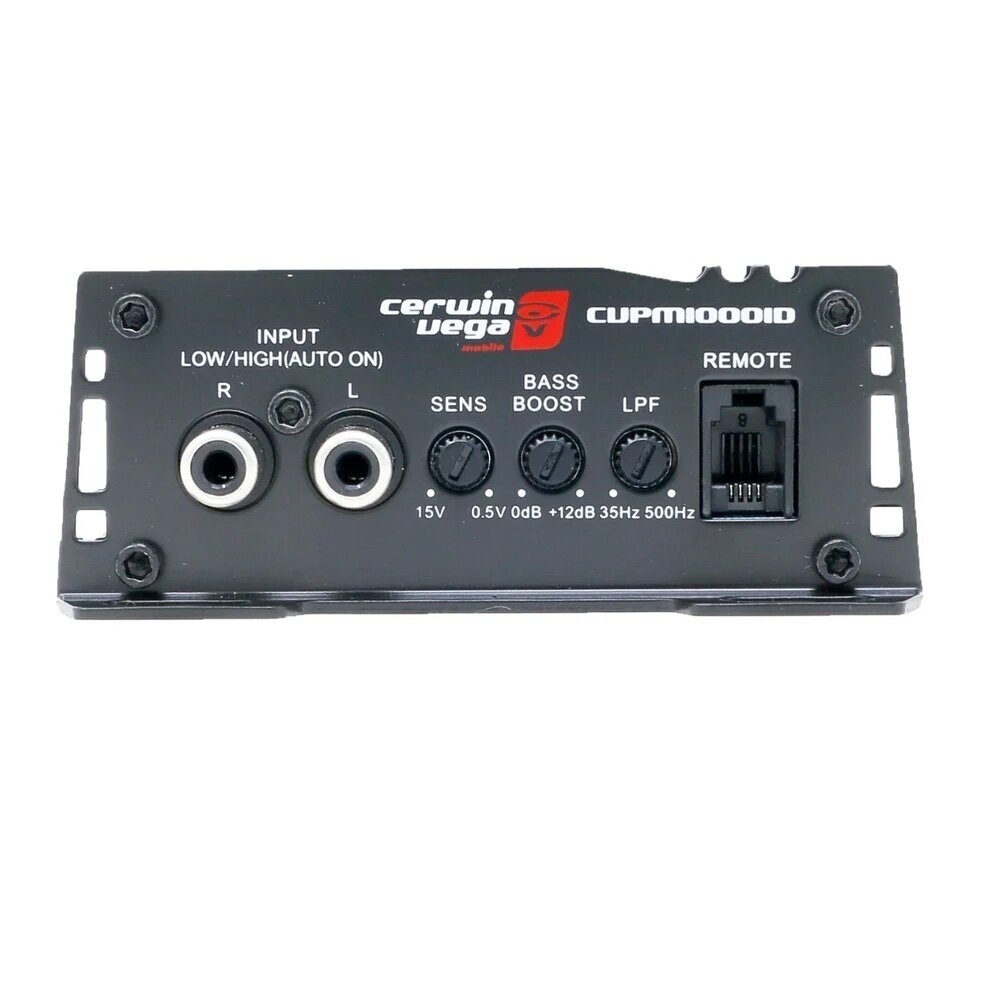

      Cerwin Vega CVPM1000.1D 4

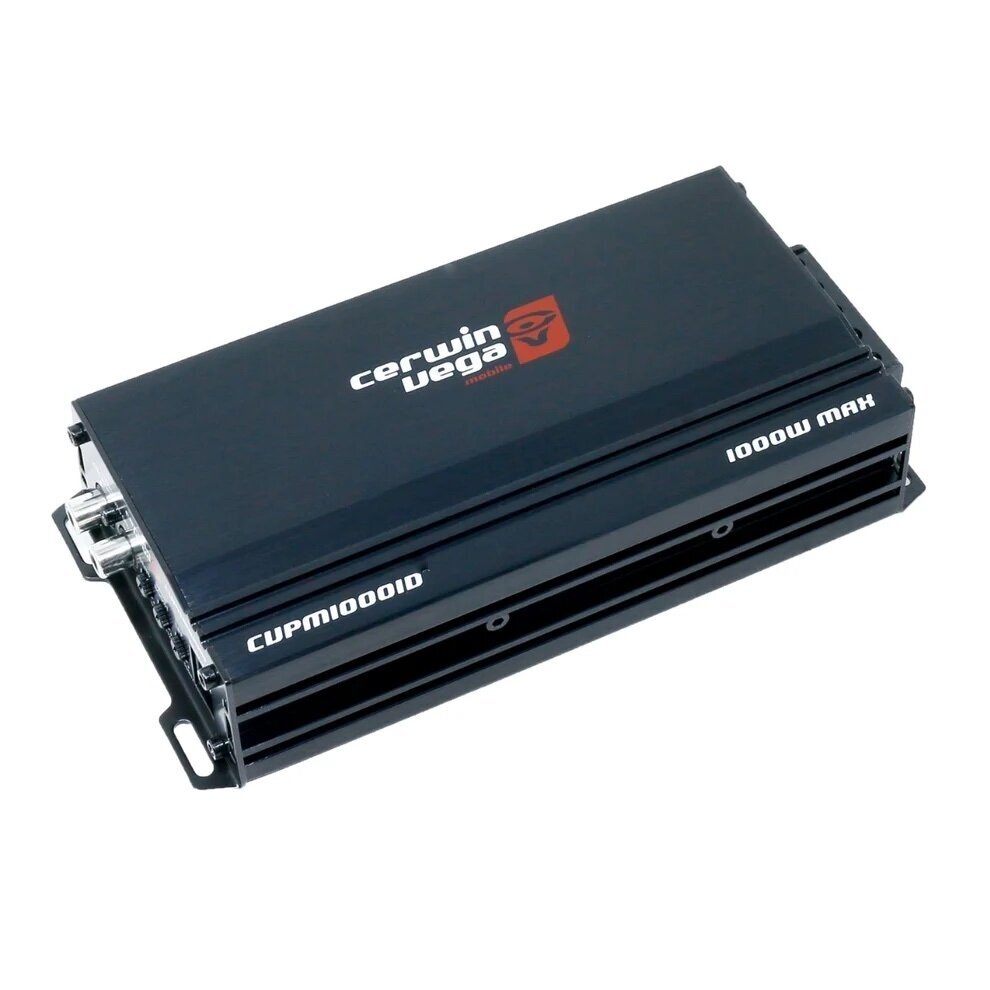

    Cerwin Vega CVPM1000.1D

    Pasiteirauti apie prekę
    189 €

    Pristatymas per 3-8 dienas.

    Gamintojas
    Cerwin Vega
    Kanalų skaičius
    1

  • Specifications:

    CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier

    Power Rating (RMS)

    RMS POWER PER CHANNEL 4Ω 310W X 1
    RMS POWER PER CHANNEL 2Ω 500W X 1
    WATER RESISTANCE - YES
    FREQUENCY RESPONSE (HZ): 35HZ-500HZ

    Power Supply

    Power Supply: Full WPM
    Power Supply Threshold: 10.0V-17.0V (DC)
    Idle Current: (0.7A)

    Distortion

    THD 4 (1KHZ @4Ω): 0.01%
    S/N RATIO (A WEIGHTED @1W): -85dBA
    S/N RATIO (A WEIGHTED @FP): -101.1dBA

    Input Sensitivity

    Hi/Low Level Input: 0.15mV-6.0V
    Input Impedance

    Low Level Input: 20KΩ

    Output Stage

    Output Impedance: 0.0297Ω
    Damping Factor (50Hz@4Ω): >70
    Bandwidth (-3db): 10Hz-45KHz

    Crossover (1-12dB/Oct)

    Variable High-Pass:
    Variable low-Pass: 35Hz-500Hz

    Fuse Rating

    2x30A

    Dimensions

    Length x Width x Height: 194mm x 95mm x 37.3mm
