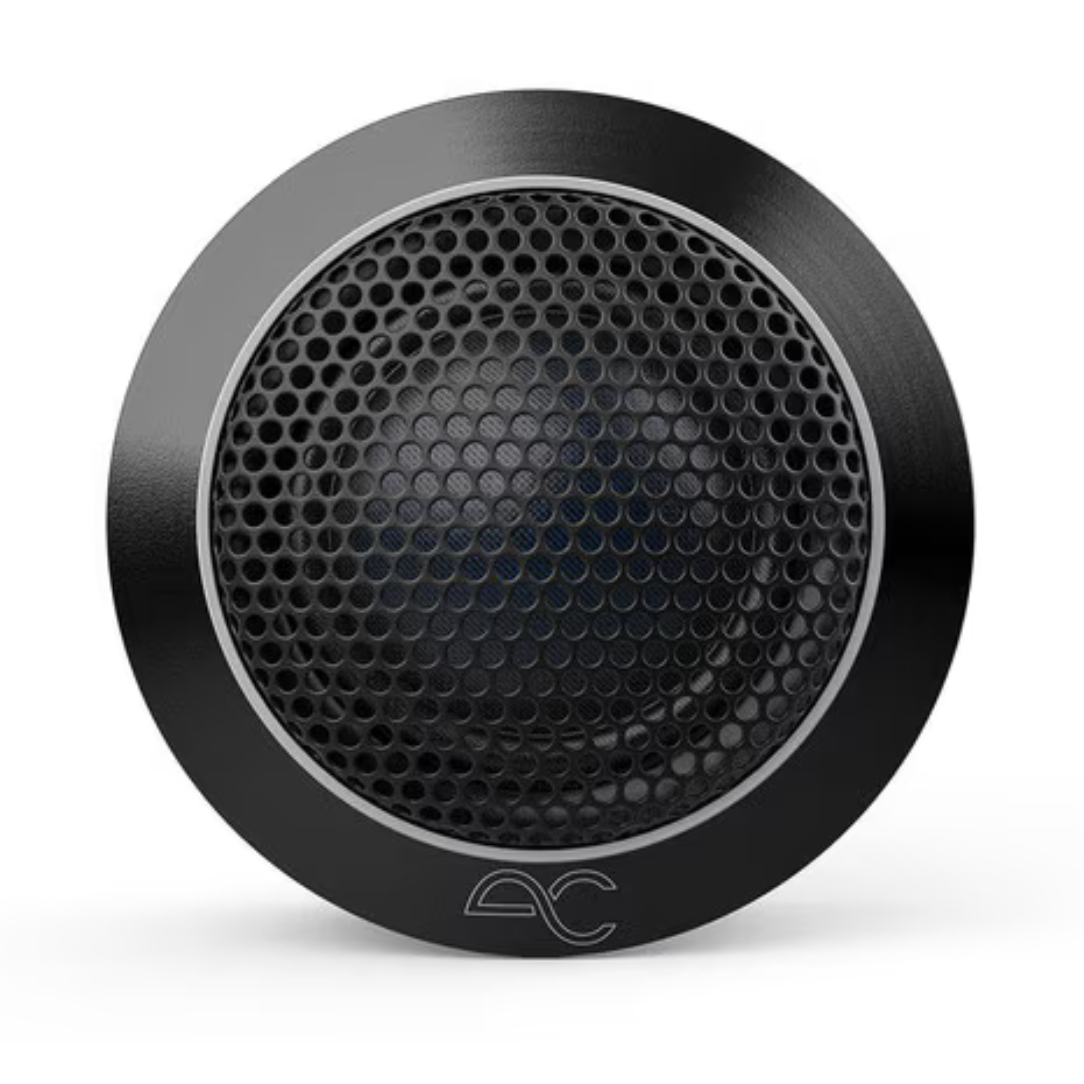

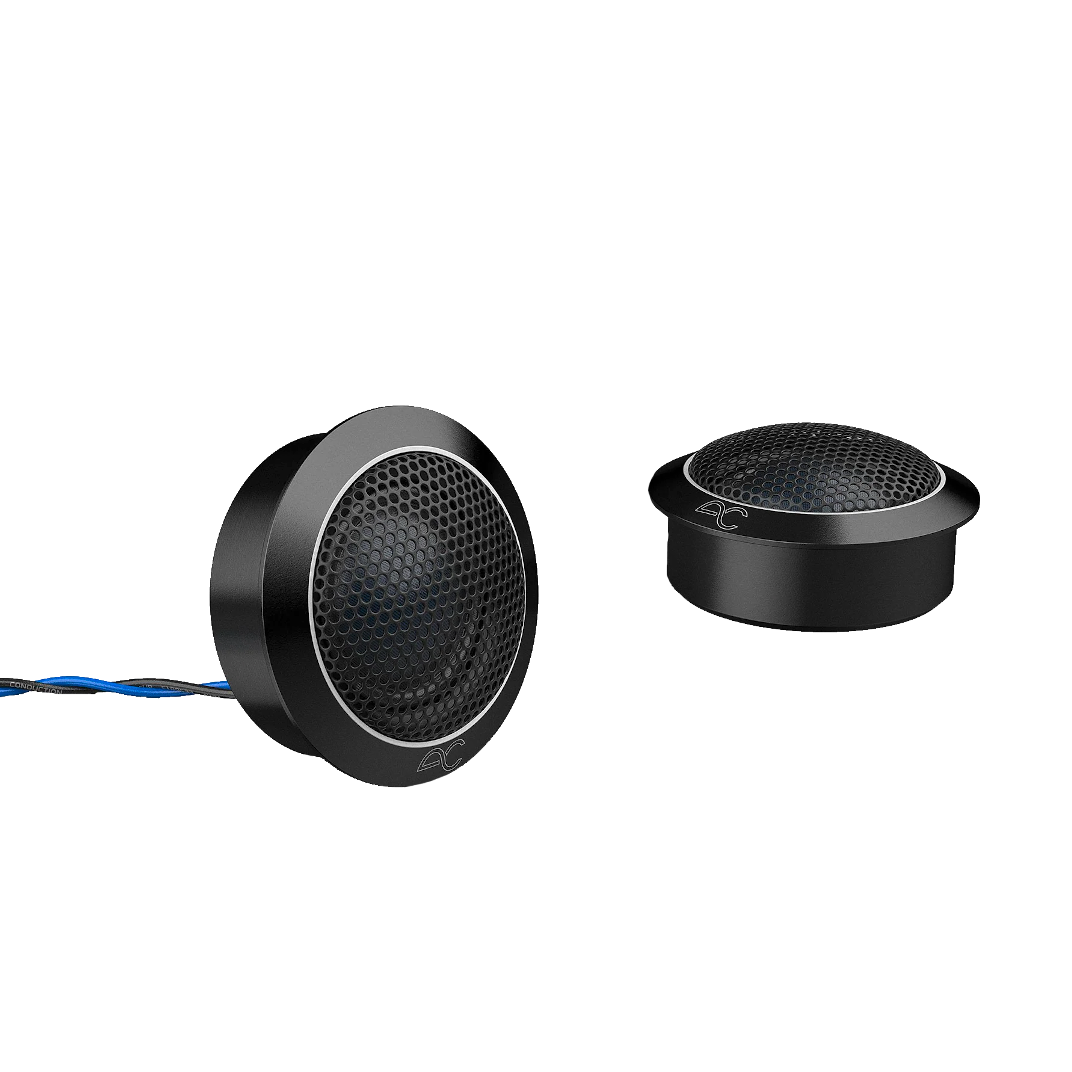

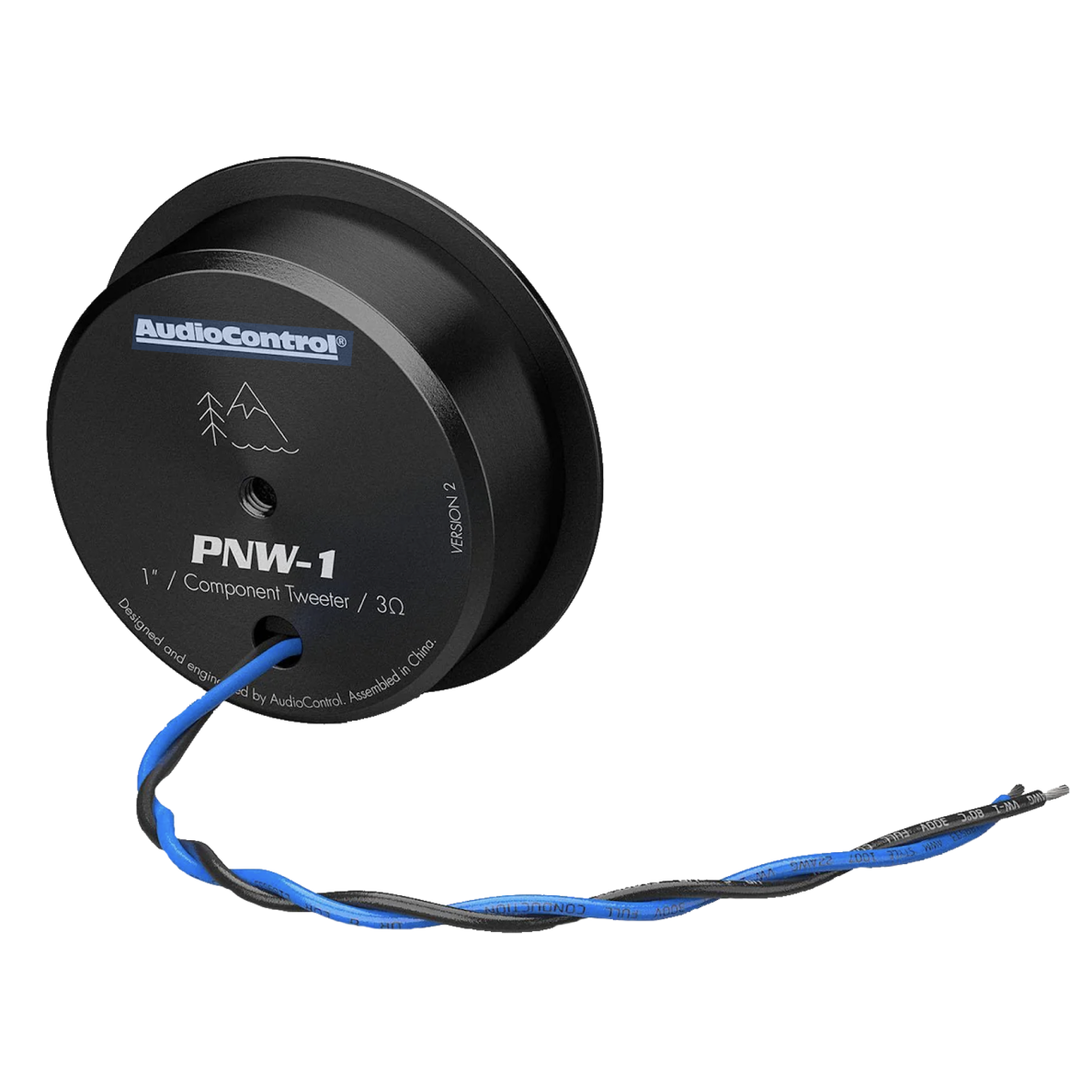

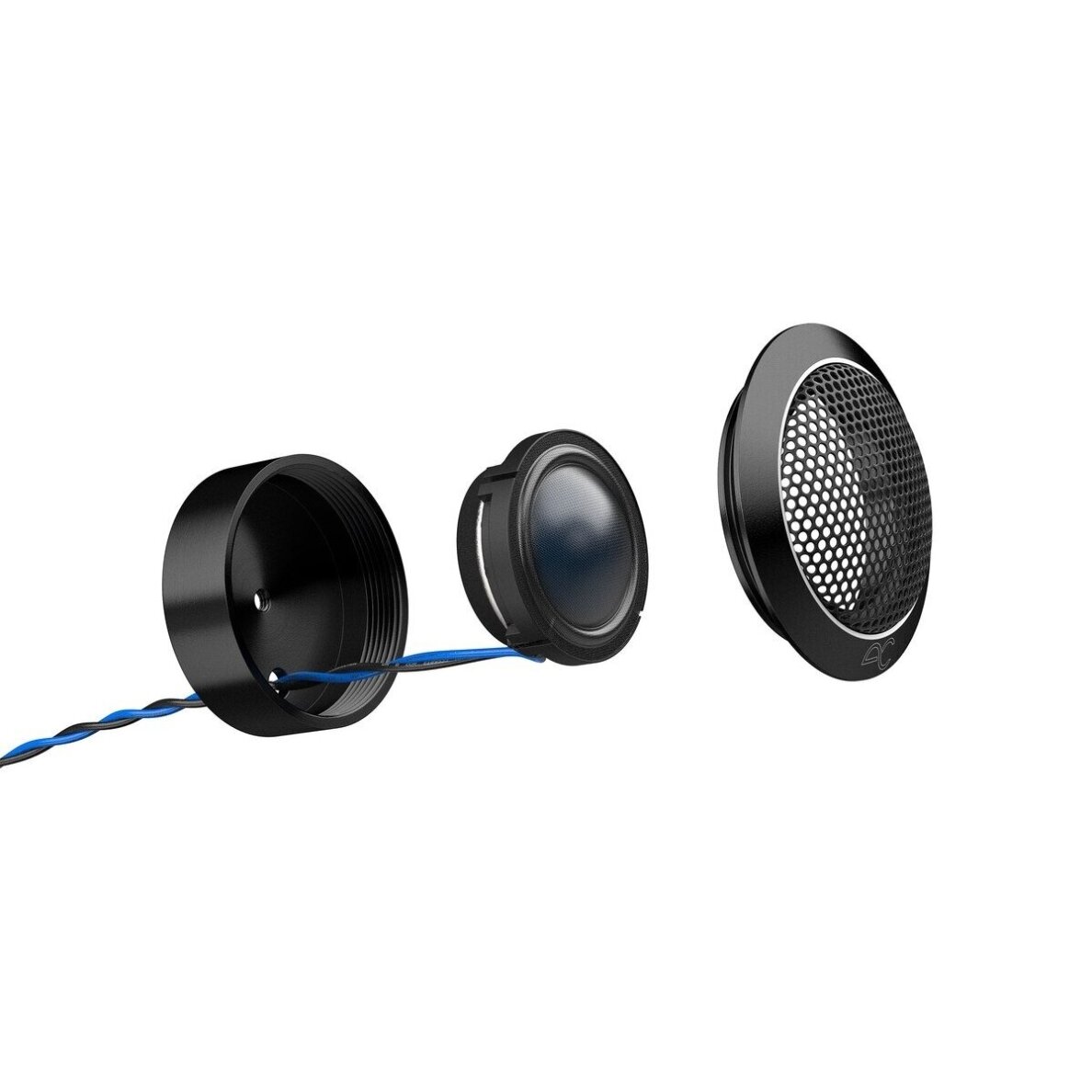

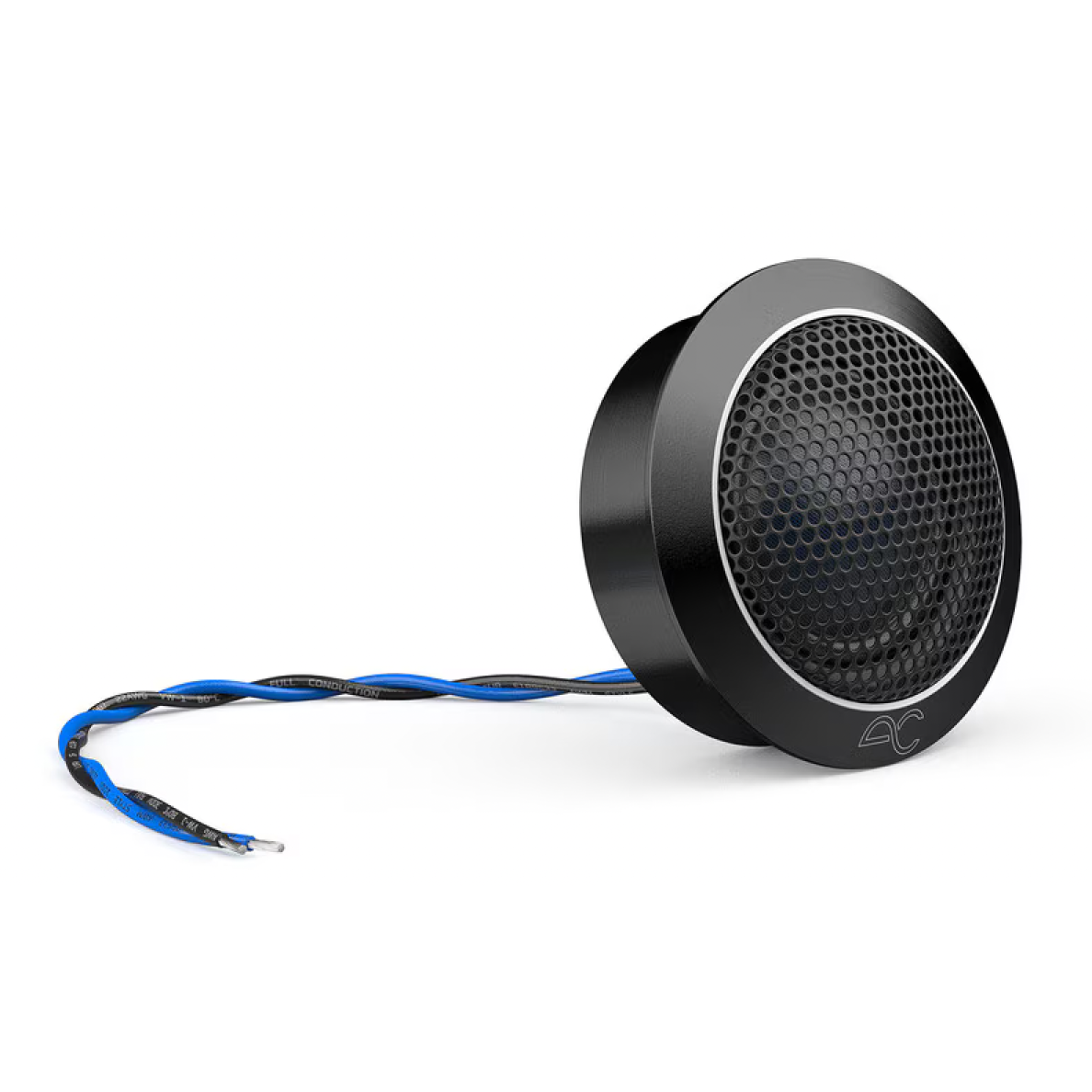

Audio Control PNW-1

SPECIFICATIONS
DC Resistance (Re). 2.3 Ohms
Power 100W RMS / 125W Max
Nominal Impedance (Z) 3 Ohms
Resonance Freq. (Fs) 1.621 kHz
Mechanical Q Factor (Qms) 6.92
Electrical Q Factor (Qes) 2.3091
Total Q Factor (Qts) 1.7314
Frequency Response 1k-20kHz
Tweeter Voice Coil Diameter 25 mm

IN THE BOX: (2) PNW-1, Manual, Warranty

IN-LINE CROSSOVER SPECIFICATIONS
Crossover Type 1st Order Butterworth
Crossover Frequency 3.5 kHz HP
Slope (Octave) -6 dB

DIMENSIONS
Overall Diameter (w Grille): 2.13 in/ 54 mm
Cut Out Diameter: 1.85 in/ 47 mm
Mounting Depth: 0.63 in/ 16 mm
